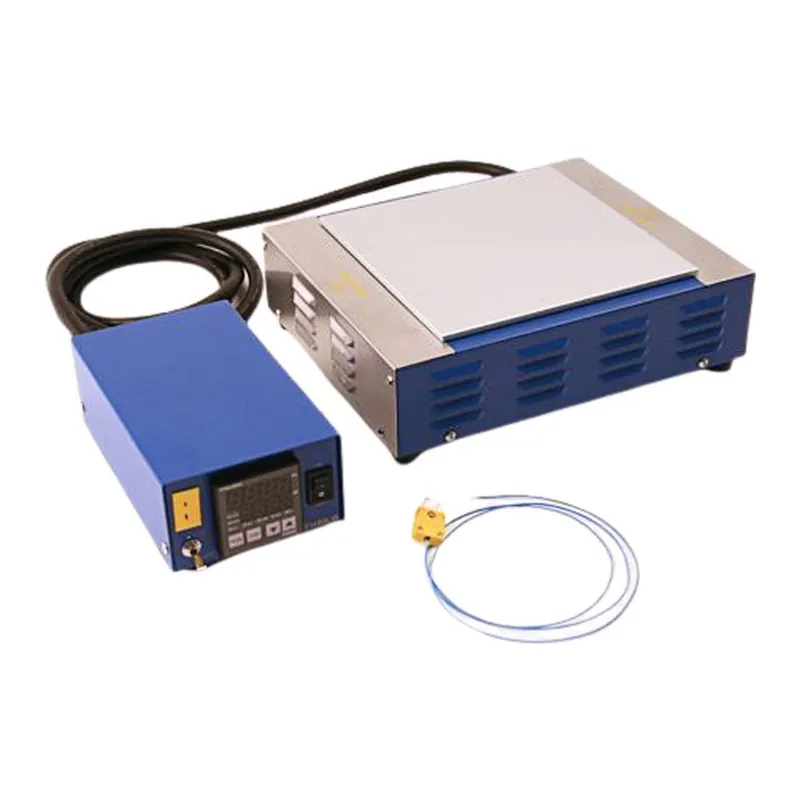

Hakko FR860-02 ESD-Safe 600W Large Preheater

Selectable inputs for the closed loop temperature control allows for the precise regulation of the preheat temperature by either plate temperature input or remote thermocouple input.

Plate construction minimizes warping over time and utilizes modern, replaceable ceramic heating elements that are powerful enough to preheat some of the heaviest heat sink assemblies. Gaps between the plate surface and case are minimized reducing the loss of small components into the product.

The separate plate/controller design minimizes use of valuable bench space in front of the operator. Durable, all metal case construction is ESD-safe.

Includes

FR860-30 Controller

FR8602-01 Preheat Plate (Large) 120VAC 60Hz

B2419 Power Cord

B3516 Thermocouple (Type K)

Specifications

Power Consumption: 600W / 120VAC 60Hz

Temperature Range: Room Temp – 260°C / Room Temp – 500°F

Temperature Stability: ±5°C/±9°F

Temperature Control: Industrial Microprocessor

Temp. Control Modes: Plate or External Thermocouple

Thermocouple Inputs: 1 – Type K

Heating Surface Dimensions: 178 x 178mm / 7.0″ x 7.0″

Plate Overall Dimensions: 250 x 79 x 204mm / 9.8″(W) x 3.1″(H) x 8.0″(D)

Controller Overall Dimensions: 100 x 66 x 169mm / 3.9″(W) x 2.6″(H) x 6.7″(D)

Weight (w/o Cord): 3.5 kg / 7.9 lbs.

Product Overview

More Information

SKU	I323387
Part No.	FR860-02
Brand	Hakko
ESD-Safe	Yes
