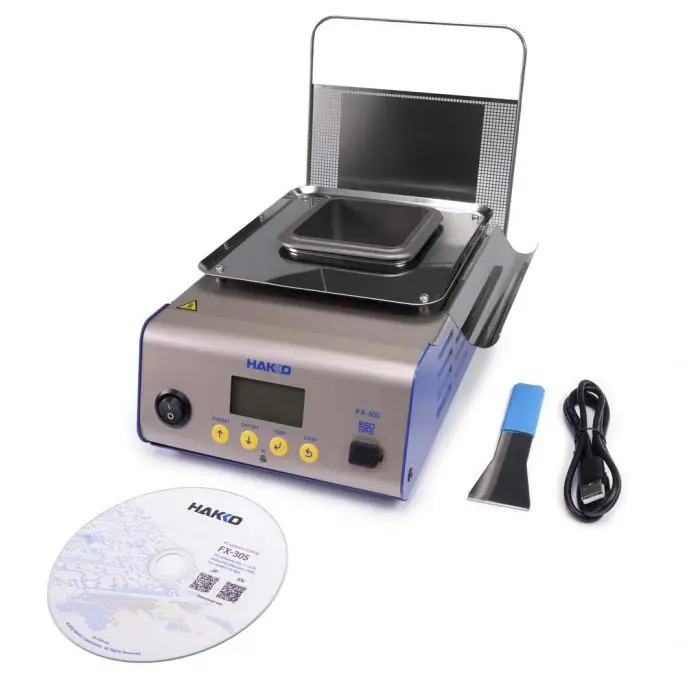

Hakko FX305-03 Digital Solder Pot

Features & Benefits

The new digital solder pot from Hakko. The FX-305 comes with a standard 75 x 75 crucible size, a new cover to protect from solder splatter, and new software to be easily programmed from any PC. The new LCD display gives clear icon indicators that allow the user to know when it’s in different modes, locked, or in a specific profile.

Includes:

Soldering Pot Unit

Spatula

J-shaped Waste Collector

Hexagon Wrench

75 x 75 mm Crucible

USB Cable

Pot Cover

Power Cord

Specifications

Model Name: FX-305

Part No.: FX305-03

Power Consumption: 575W (120V)

Temperature Accuracy: ±10°C (±18°F)

Temperature Stability: ±5°C (±9°F)

Weight (w/o solder and cord): 1.7 kg (3.74 lb.)

Outer Dimensions: 162(W) x 100(H) x 239(D) mm

Safety Approval

FX-305 Crucibles

	50 x 50 mm Square	75 x 75 mm Square	100 x 100 mm Square
Temperature Range	50 – 530 C (120 – 990 F)	50 – 500 C (120 – 940 F)	50 – 450 C (120 – 840 F)
Crucible Dimensions	50(W) x 50(D) x 72.5(H) mm 2.0(W) x 2.0(D) x 1.7(H) in.	75(W) x 75(D) x 42.5(H) mm 3.0(W) x 3.0(D) x 1.7(H) in.	100(W) x 100(D) x 53(H) mm 3.9(W) x 3.9(D) x 2.1(H) in.

Product Overview

More Information

SKU	I308315
Part No.	FX305-03
Brand	Hakko
