Hakko FX805-03 ESD-Safe 400W Ultra Heavy-Duty Soldering Station

The FX-805 Ultra Heavy-Duty Soldering Station is the ultimate solution in the Large Current Era. Specifically designed for large mass components with high current, large transformers, and difficult heat sinks, nothing gives you the power quite like Hakko. A 400W powered Ultra Heavy-Duty soldering station with new software capabilities, new T37 tips, and is backwards compatible to work with T33 Tips.

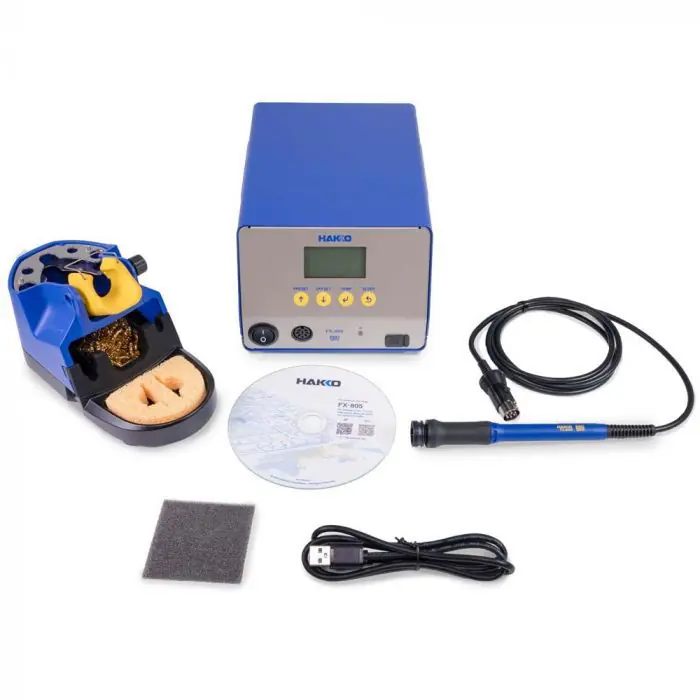

Includes:

Soldering Station

Soldering Iron

Iron Holder w/ Tip Cleaner

USB Cable

Filter

Power Cord

Instruction Manual

CD-ROM for PC Software

Features & Benefits

The Hakko FX-805 packs 400W of power, meant for difficult soldering of large mass components such as high current inductor coils, large transformers, shields, and difficult-to-solder heat sinks. The station has new T37 390W Tips and is also backwards compatible with T33 260W tips that have top-controlled temperatures and multiple shapes. All with brand-new software and an easy-to-use operating system to make programming and testing as easy as 1, 2, 3.

Specifications

Station

Model Name: FX-805

Part No.: FX805-03

Output Voltage: 30V

Power Consumption: 460W

Temperature Range: 120°- 940°F (50°C – 500°C)

Temperature Stability: ±9°F (±5°C)

ESD-Safe

Soldering Iron – Handpiece

Model Number: FX-8004

Part Number: FX8004-81

Power Consumption: 390W (30V)

Tip-to-Ground Resistance: < 2 OHMS

Tip-to-Ground Potential: < 2mV

Heater: HAKKO Composite CeramicTM

Length of Cord: 3.9 ft. (1.2 m)

Total Length (w/o cord): 9.6 in. (244 mm)

Tips (not included): T37 Series

¹Tip is not included
²As measured with T37-D24 Tip installed

Product Overview

More Information

SKU	I308342
Part No.	FX805-03
Brand	Hakko
ESD-Safe	Yes
Adjustment	Programmable
Output	Single Tool
Includes	Tool(s) & Stand
