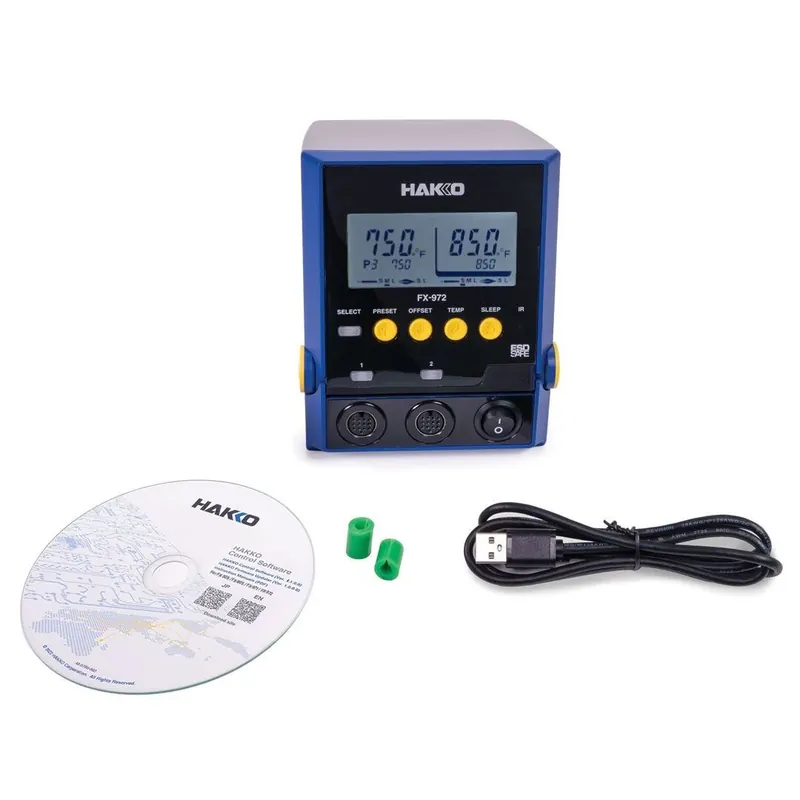

Hakko FX972-011 ESD-Safe 200W Dual Port Digital Soldering Station

The Hakko FX-972 Dual-Port Soldering Station is a next-generation high-performance 200W soldering station that supports a wide range of handpieces and derives itself from the best parts of the FM-203. The FX-972 station uses a minimal footprint design that allows multiple units to be stacked to conserve bench space and includes a easy-to-read display that is more than 3 times larger than the FM-203 and displays set temperature and sensor temperature simultaneously. The operation and setup are similar to the FM-203 but the interface is redesigned to be intuitive and includes features such as an IR auto offset when using the FG-100B Tip Thermometer or FG-101B Station Tester, a preset mode that allows easy selection of up to 5 user programmable presets, 3-letter passcode lock for process control, and user selectable sleep temperature. The Hakko FX-972 also includes a USB interface that allows the station to be set up, controlled, and monitored from a PC using the Hakko Control Software that is included with the station.

Specifications

Input Voltage: 120V / 50-60 Hz

Output Voltage: 24V

Power Consumption: 200W

Temperature Range: 50°C-450°C / 120°F-850°F

Temperature Stability: ±3°C / ±5°F

Outer Dimensions: 126(W) x 151(H) x 149(D)mm / 5.0″ x 5.9″ x 5.9″

Weight: 6.2 lbs. / 2.8 kg.

Product Overview
