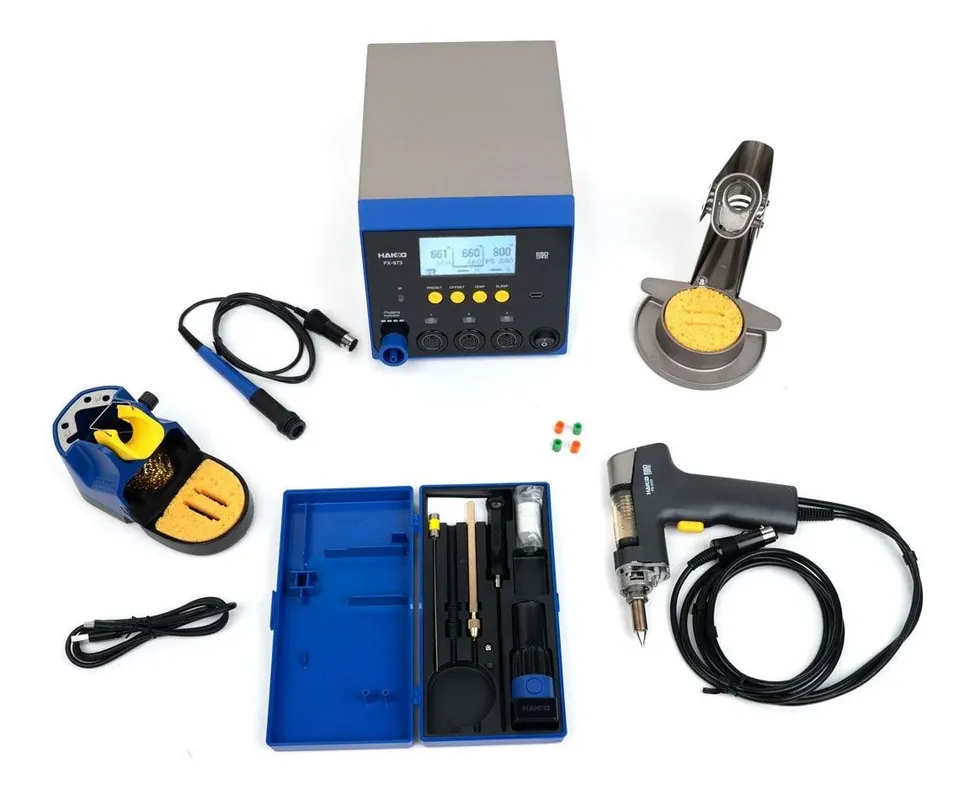

Hakko FX973-010 ESD-Safe 3-Port Rework Station

Specifications

Station

Power Consumption: 400W 120V

Temperature Range: 120° – 940°F (50°-500°C)*

Temperature Stability: ±5°C (±3°F)

Vacuum Generator: Vacuum Pump, double cylinder type

Vacuum Pressure (Max.): 80 kPa (600 mmHg)

Suction Flow: 15 L/min

Output Voltage: 24V

Soldering Iron Handpiece

Power Consumption: 95 W/24 VAC

Tip-to-Ground Resistance: < 2 OHMS

Tip-to-Ground Potential: < 2mV

Length of Cord: 3.9′ (1.2 m)

Total Length (w/o cord): 7.4″ (188 mm)

Desoldering Handpiece

Power Consumption: 140W

Nozzle-to-Ground Resistance: < 2 Ω

Nozzle-to-Ground Potential: < 2 mV

Heater:

Composite

Ceramic

Cartridge

Nozzles: N61 Series

Standard Nozzle (included): N61-05 (1.0mm / 0.04″)

Cord Length: 4′ (1.2 m)

Total Length (w/o cord): 6.6″ (168mm)

*Temperature range varies with handpiece

Product Overview

More Information

SKU	I153204
Part No.	FX973-010
Brand	Hakko
ESD-Safe	Yes
Adjustment	Programmable
Type	Rework System
Output	Three Tool
Includes	Tool(s) & Stand
