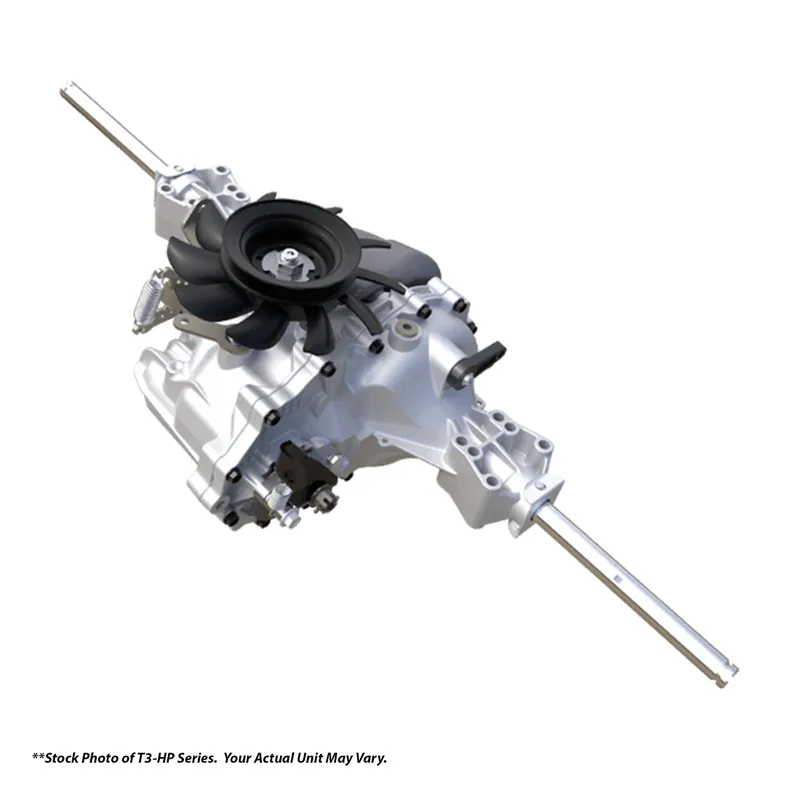

Hydro-Gear – T3-BHMF-5X3C-1DB5 – T3 Hydrostatic Transaxle

T3-HD^™

OPTION OF A MANUALLY-OPERATED, FULL-LOCKING DIFFERENTIAL.

Boasting the highest torque in its class, the integrated design of the T3™ also gives you the option of a manually operated, full-locking differential (turn on when you need it, off when you don’t). Rugged, die-cast aluminum housings and maintenance-free design mean you get years of optimum performance. The infinite speed control gives you precise handling and the sturdy ¾” axle delivers reliable power when you need it.

Optional full-locking differential

Sturdy 3/4 in axle

Infinite speed control for precise handling

Maintenance-free design for ease of use

SPECIFICATIONS

OVERALL TRANSAXLE REDUCTION

27:1

70:1

91:1

INPUT SPEEDS

MAXIMUM HI-IDLE (NO LOAD) – 3000 rpm

MINIMUM (LOADED) – 1800 rpm

OUTPUT TORQUE

140 lb-ft [189 Nm]

150 lb-ft [203 Nm]

160 lb-ft [216 Nm]

CONTINUOUS INTERMITTENT

230 lb-ft [311 Nm]

290 lb-ft [393 Nm]

300 lb-ft [406 Nm]

AXLE SHAFT DIAMETER

75 in [19.05 mm]

AXLE SHAFT END OPTIONS

Keyed or DD

PARKING BRAKE TYPE

External Disc

WEIGHT OF UNIT

28 lb [12.7 kg]
