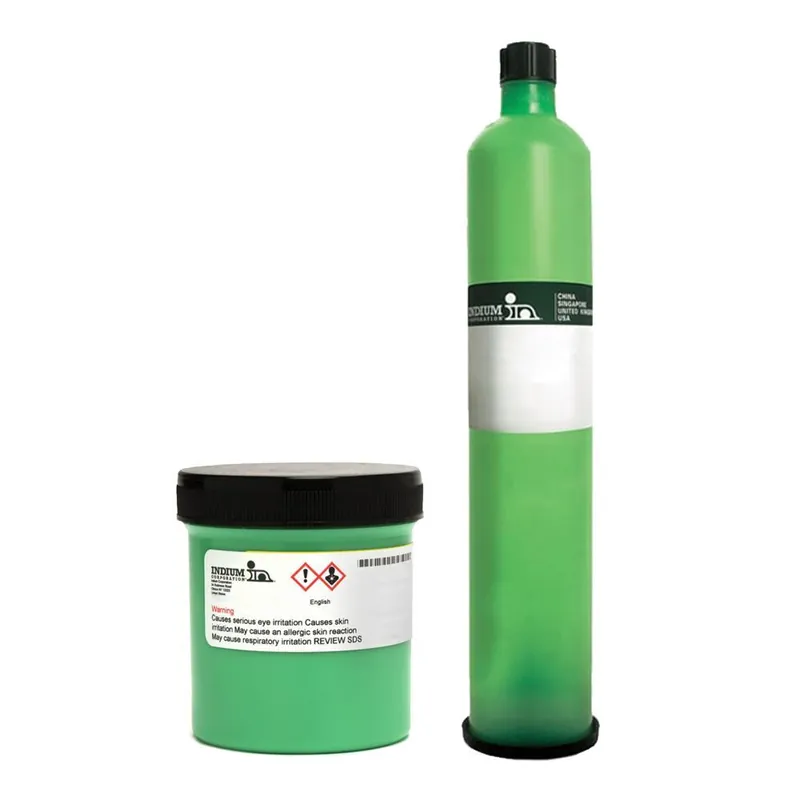

Indium8.9HF SAC305 Lead-Free, Halogen-Free No-Clean Solder Paste

Features

Type: Lead-Free 8.9HF No-Clean Halogen-Free Solder Paste Type 3 Metal Load: 88.75% (800494)

Type: Lead-Free 8.9HF No-Clean Halogen-Free Solder Paste Type 4 Metal Load: 88.25% (800495)

Shelf Life: 12 months

Alloy: SAC305 (Sn96.5Ag3Cu0.5) Type: No-Clean

Storage Conditions: <10>

High transfer efficiency through small apertures (≤0.66AR)

Halogen-free per EN14582 test method

J-Standard-004B, Flux Classification: ROL0

Low BGA, CSP, QFN voiding

Compatible Products:

Rework Flux: TACFlux® 020B-RC, TACFlux® 089HF

Cored Wire: CW-807, Core 230-RC

Wave Flux: WF-9945, WF-9958

High transfer efficiency through small apertures (≤0.66AR)

Eliminates hot and cold slump

High oxidation resistance

Wets well to oxidized BGA and pad surfaces

Excellent soldering performance under high-temperature and long reflow processes

Clear, probe testable flux residue

Compatible with SnPb alloys

Alloys

Indium Corporation manufactures low-oxide spherical powder composed of a variety of Pb-free alloys that cover a broad range of melting temperatures. This document covers Types 3 and 4 powders as standard offerings with SAC alloys. Other alloys may be available with this flux vehicle upon request. The metal percent is the weight percent of the solder powder in the solder paste and is dependent upon the powder type and application.

Product Overview

More Information

SKU	G100993
Part No.	8.9HF
Brand	Indium
Material	SAC305
Type	No Clean
Notes	Halogen-Free, Lead-Free
