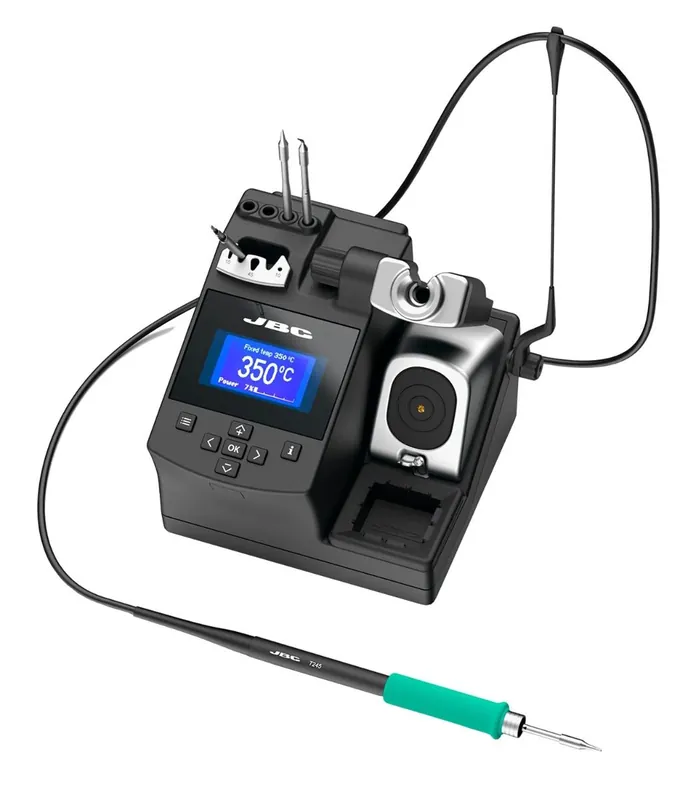

JBC CD-1BQF Soldering Station, Compact ESD-Safe Digital Precision

Specifications

Selectable Temperature: 90 to 450°C / 190 to 840°F

Connectivity USB-B: Software PC / Firmware update

Equipotential Bonding: Optional connection to EPA

Connector: RJ12

Earthing Fuse: F 1.25A

ESD/EOS / ESD safe: Yes

Tip to Ground Vol./ Resist.: Meets and exceed ANSI/ESD S20.20-2014 IPC J-STD-001F

Power Supply

Peak Power: 130 W – 23.5 V

Operating Temp. Range: 10 to 50°C / 50 to 122°F

Dimensions & Weight

Compact Stations Weight: 2.74 kg. / 6.04 lb.

Compact Stations Dimensions: 170 x 176 x 145 mm / 6.69 x 6.93 x 5.71 in

Package Weight: 3.34 kg. / 7.36 lb.

Package Dimensions: 234 x 234 x 258 mm / 9.21 x 9.21 x 10.16 in

Product Overview

More Information

SKU	I216288
Part No.	CD-1BQF
UPC/EAN	8427327512948
Brand	JBC
ESD-Safe	Yes
Adjustment	Programmable
Output	Single Tool
Input	120V
Includes	Tool(s) & Holder
