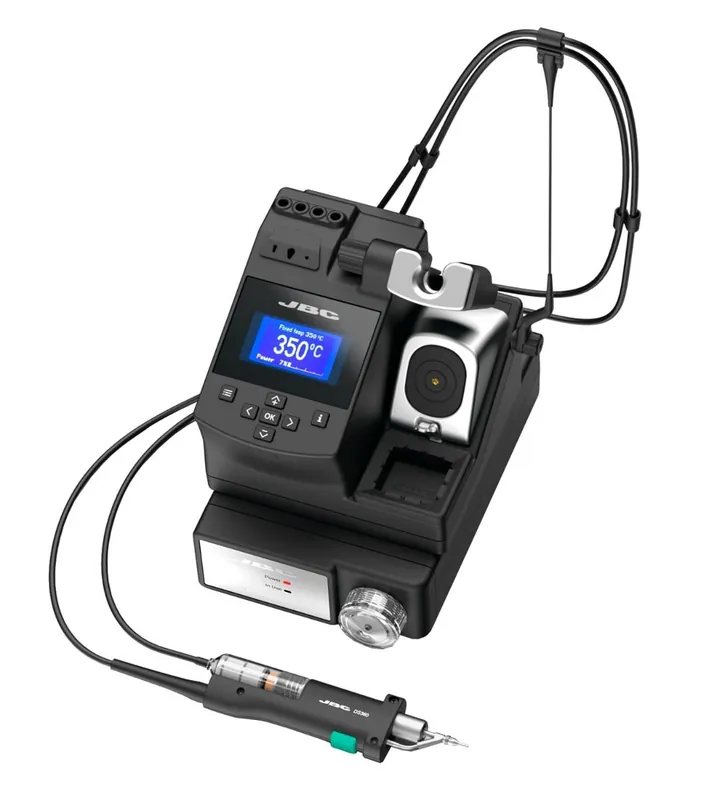

JBC CS-1F Compact ESD-Safe Digital Desoldering Station

Specifications

Selectable Temperature: 180 to 450°C / 360 to 840°F

Vacuum: 75% / 570 mmHg / 22.4 inHg

Flow Rate: 9 SLPM

Connectivity

USB-B: Software PC / Firmware update

Equipotential Bonding: Optional connection to EPA

RJ12 Connector: Earthing Fuse

F 1.25A: ESD/EOS

ESD-Safe: Tip to ground vol./ resist.

Meets and Exceed: ANSI/ESD S20.20-2014 IPC J-STD-001F

Power Supply

Peak Power: 40 W – 23.5 V

Operating Temp. Range: 10 to 50 °C / 50 to 122 °F

Weight & Dimensions

Compact Stations Weight: 4.00 kg. / 8.82 lb.

Compact Stations Dimensions: 170 x 176 x 145 mm / 6.69 x 6.93 x 5.71 in

Package Weight: 5.47 kg. / 12.06 lb.

Package Dimensions: 495 x 295 x 255 mm / 19.49 x 11.61 x 10.04 in

Product Overview

More Information

SKU	I304949
Part No.	CS-1F
UPC/EAN	8427327537231
Brand	JBC
ESD-Safe	Yes
Adjustment	Programmable
Output	Single Tool
Input	120V
Includes	Tool(s) & Holder
