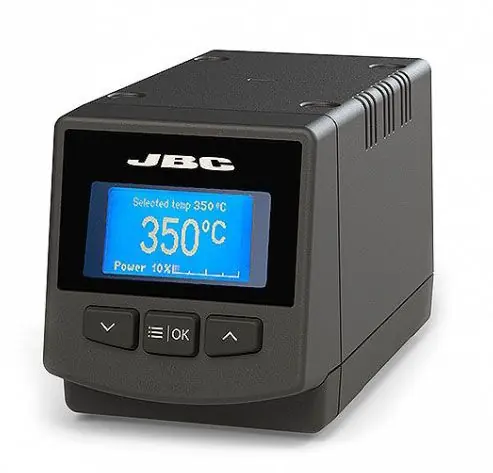

JBC DI-1D ESD-Safe Digital Single-Tool Control Unit

Specifications

Selectable Temperature: 90 to 450°C / 190 to 840°F

Sleep and Hibernation Mode: These modes lower soldering tip temperature when the tool rests in the stand in order to avoid oxidation and extending tip life.

Max. and Min. Temperature: Limit the temperature range in which the operator is allowed to work.

Temperature Levels: Instant selection of up to 3 editable temperature settings for solder joints with different heat requirement.

PIN Protection: Keep station parameters protected against unauthorized access.

Connectivity

USB-B (front): Firmware upgrade / Software PC / Traceability

Equipotential bonding

ESD/EOS / ESD-Safe: Yes

Power Supply

Peak Power: 130 W – 23.5 V

Operating temp. range: 10 to 40°C / 50 to 104°F

Weight & Dimensions

Control Unit Weight: 2.15 kg. / 4.75 lb.

Control Unit Dimensions: 180 x 94 x 106 mm / 7.09 x 3.70 x 4.17 in

Package Weight: 2.50 kg. / 5.51 lb.

Package Dimensions: 220 x 213 x 160 mm / 8.66 x 8.39 x 6.30 in

Product Overview

More Information

SKU	I205484
Part No.	DI-1D
UPC/EAN	8427327368057
Brand	JBC
ESD-Safe	Yes
Adjustment	Programmable
Output	Single Tool
Input	120V
