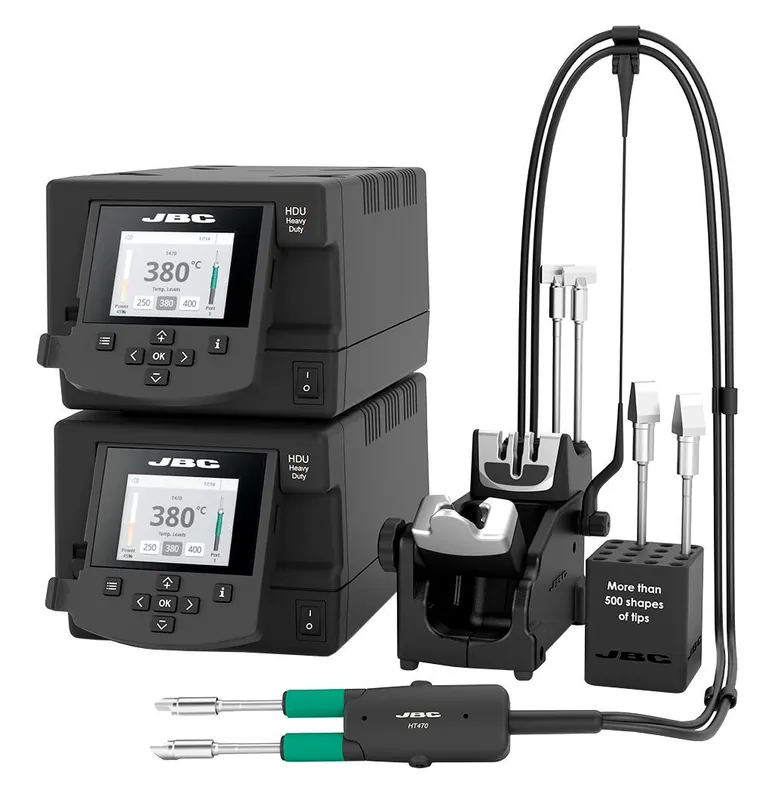

JBC HDE-1KE Premium ESD-Safe Digital Heavy-Duty Tweezers Station

Specifications

Selectable Temperature: 90 to 500°C / 190 to 932°F

Idle Temp. Stability (still air): ±1.5°C (±3°F) Meets and exceed IPC J-STD-001F

Temp Accuracy: ±3% ( using reference cartridge)

Temp Adjustment: ±50°C (±90°F) Through station menu setting

Connectivity

USB-B (rear): Software PC / Traceability

USB-A (front): Firmware update Soldering Graphics management

Connector: RJ12

ESD/EOS: Tip to ground vol./ resist.

Meets and Exceed: ANSI/ESD S20.20-2014 IPC J-STD-001F

Power Supply

Peak Power: 250 W – 42 V

Operating Tmp. Range: 10 to 50°C / 50 to 120°F

Dimensions & Weight

Premium Stations Weight: 7.27 kg. / 16.02 lb.

Premium Stations Dimensions: 232 x 148 x 240 mm / 9.13 x 5.83 x 9.45 in

Package Weight: 9.68 kg. / 21.33 lb.

Package Dimensions: 585 x 512 x 220 mm / 23.03 x 20.16 x 8.66 in

Product Overview

More Information

SKU	I393473
Part No.	HDE-1KE
UPC/EAN	8427327570078
Brand	JBC
ESD-Safe	Yes
Adjustment	Digital
Output	Single Tool
Input	120V
Includes	Tool(s) & Stand
