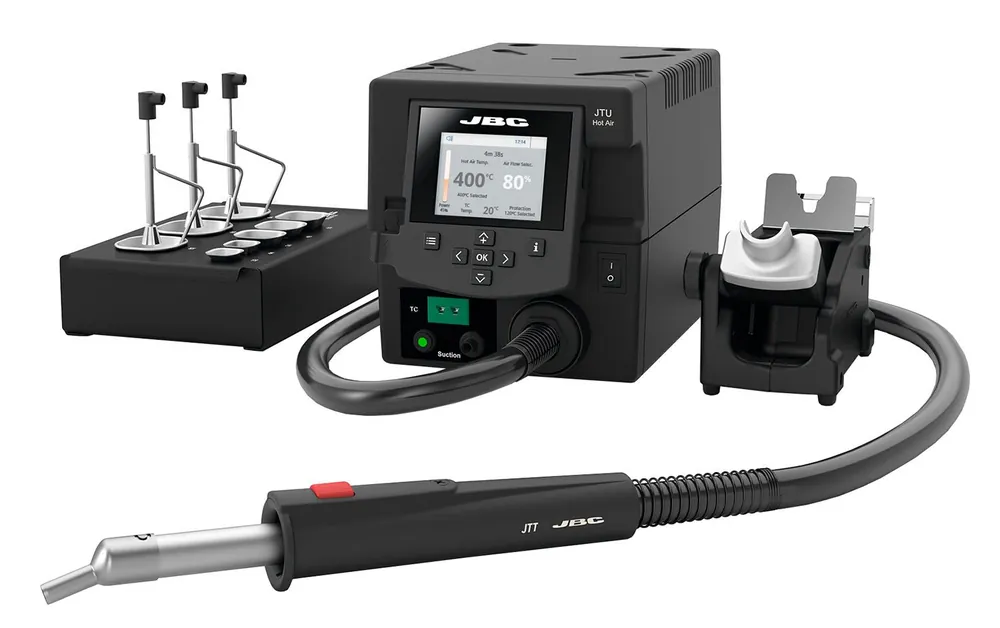

JBC JTSE-1B Premium ESD-Safe Digital Hot Air Rework Station

It works exclusively with JTU Control Unit.

To protect a particular area or an adjacent components, we recommend the use of Protectors and Extractors and, to direct the heat to a particular area and protect adjacent components you can use Nozzles for JTT.

Its adjustable tool holder adapts to your work position and Easy Nozzle Changer allows you to switch between nozzles without interrupting your work.

The auto-stop function is a safety measure which guarantees that the heat is automatically cut off when the tool is in the stand. This prevents potential overheating, saves power and extends heater durability.

Extractors: E2052, E2064 and E2184.

Protectors: P2220, P2235, P4000, P2230 and P4010.

Tripods: T2050 and T2250.

Specifications

Selectable Temperature: 150 to 450ºC (300-840ºF)

Air Flow: 5 to 50 SLPM

Temperature Profiles: Design specific thermal profiles to avoid thermal shock during soldering processes. Up to 25 fully configurable soldering profiles can be stored.

Operating Modes: Heating / Profiles / Cooling

Vacuum: 30% / 228 mmHg / 9 inHg

Connectivity

Type K thermocouple: Can be used both for Control and Protection purposes.

USB-B (rear): Software PC

USB-A (front): Firmware update, Graphics / Profiles management

Robot: RS-232 remote control

Pedal: Optional tool control

Equipotential bonding: Optional connection to EPA

ESD/EOS / ESD-safe

Power Supply

Nominal Power: 700 W

Operating Temp. Range: 10 to 50ºC / 50 to 120ºF

Dimensions and Weight

Weight Premium Station: 4.93 kg. / 10.86 lb.

Weight Premium Dimensions: 232 x 148 x 160 mm / 9.13 x 5.83 x 6.30 in

Package Weight: 6.01 kg. / 13.24 lb.

Package Dimensions: 490 x 485 x 278 mm / 19.29 x 19.09 x 10.94 in

Product Overview

More Information

SKU	I203288
Part No.	JTSE-1B
UPC/EAN	8427327570146
Brand	JBC
ESD-Safe	Yes
Adjustment	Programmable
Type	Hot Air System
Output	Dual Tool
Input	100 to 120V
Includes	Tool(s) & Stand
