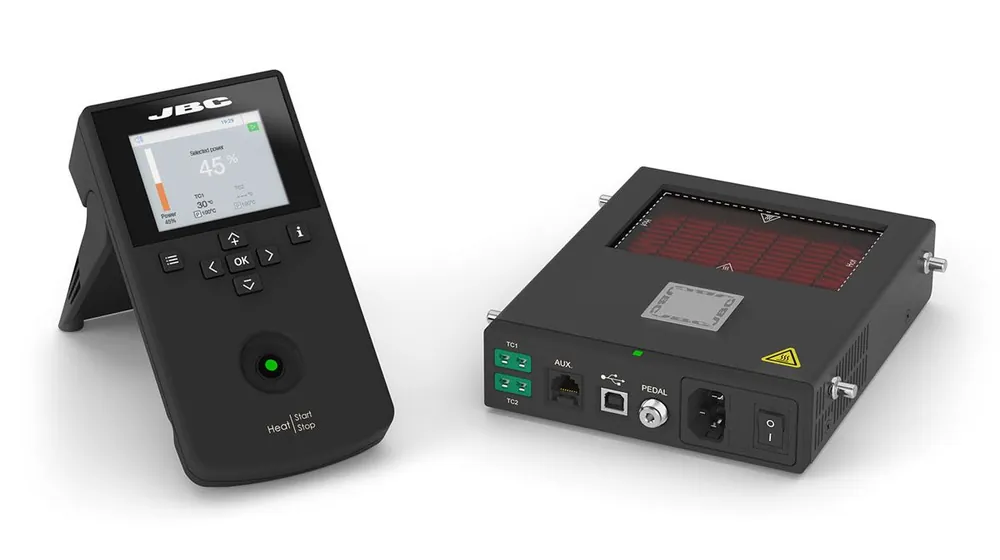

JBC PHNE-1A ESD-Safe Nano Digital Preheater

Features Three Work Modes

Power Mode allows working at a fixed power level with the option of using protection thermocouple.

Temperature Mode keeps the PCBA at a selected temperature, using the regulation thermocouple and, optionally, protection thermocouples.

Profile Mode allows control of the heating rate of the PCBA by the use of a control and protection thermocouple, without exceeding the recommended limit levels in each application. It features 25 profiles of temperature.

Specifications

Peak power: 300W

Temperature range: 120-482°F (50-250°C)

Heating Area: 4.25″ x 2.75″

Type K TC Connector: 2 for control & protection

Profiles: 22 (up to 16 steps for each)

Set temperature profiles: 3 profiles (2, 3 or 4 steps)

Maximum work time: 50 min or indefinite

USB-A:

Firmware update

Graphics and profiles

USB-B: PC communications

Robot connector: Remote control

Aux. Connector: Console connection

Pedal connector: Connect a pedal (ref. P-005) to control the heater

Preheater unit dimensions: 7.05″ x 6.5″ x 1.65″

Preheater unit weight: 2.65 lbs.

Product Overview

More Information

SKU	I510950
Part No.	PHNE-1A
Brand	JBC
ESD-Safe	Yes
Type	Infrared
