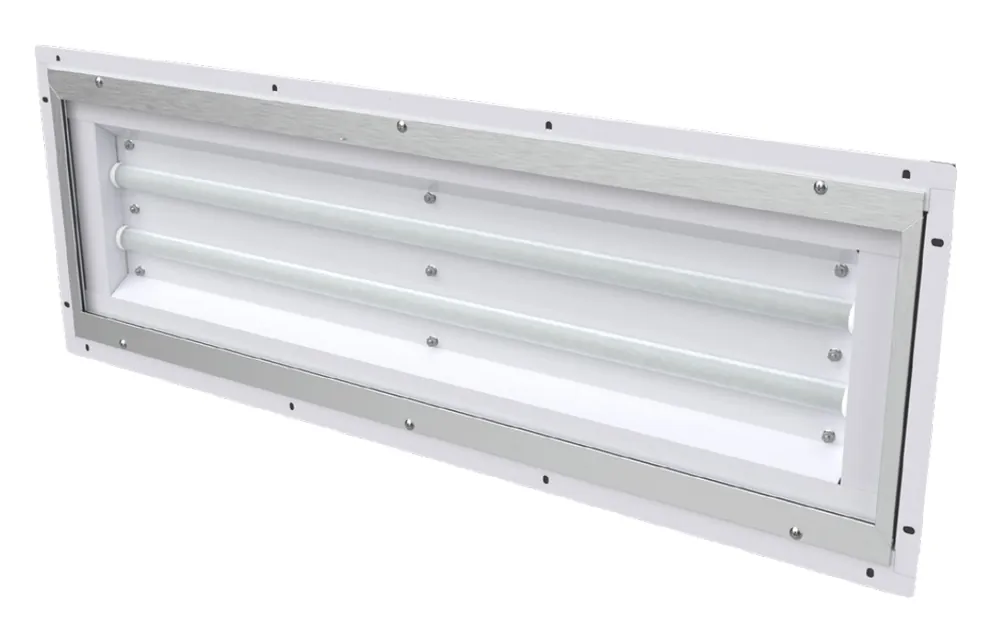

LDPI Industrial Lighting Series LE485E Class I, Division 2, Recess Mount LED Booth Fixture

Industrial Lighting Series LE485E Class I, Division 2, Recess Mount LED Booth Fixture

Manufacturer: LDPI

Part Number: LE485E-62-X1-V1-A-5-WH-X

Description: The LE485E Series Class I, Division 2 fixture is a recessed mount, front access, 5000K LED paint booth luminaire with an acrylic optic. Includes a 10′ stranded wire whip (for running through conduit) This LED fixture is available in 4 Ft. lengths with 1 or 2 rows of LED’s; replacing your standard 4 lamp fluorescent fixture.

The fixture is available with a hinged lens w/ interlock switch for use in walls, ceiling,
or hips. Or it is available with a bolt-on lens assembly and NO interlock switch for use in hip and ceiling setups only.

Specifications:

20 gauge white powder coated steel housing

Silicone free gaskets

4 Ft. length (nominal)

Clear, tempered glass lens access panel

1/2” NPT Hub(s)

Recess mount – Front access

Withstands up to 71°C bake cycle for 90 minutes with fixture power interlock off

Performance:

CERTIFICATIONS:
UL844 / CSA-C22.2 No.137 (Hazardous) CI D2, Grps A,B,C,D
CII D2, Grps F,G
Paint Spray Listed T Code: CI D2, CII D2=T6 UL1598 / CSA-C22.2 No.250 (Wet/Damp)
Lumen Maintenance (L70) >60,000 hrs. (reported)
CRI >80
-25°C to 55°C Ambient (IC / NonIC)
