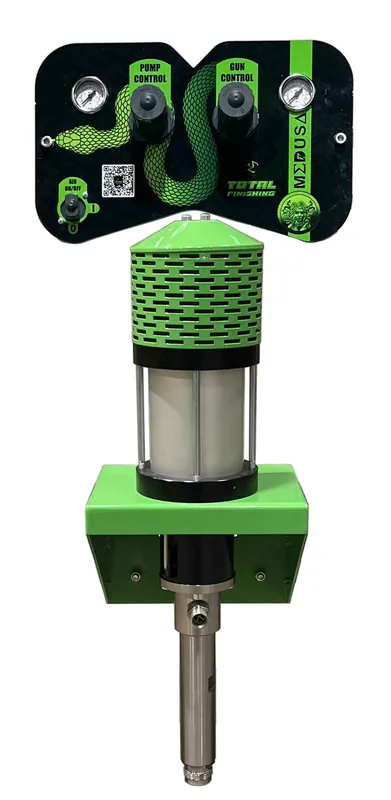

Medusa™ 30:1 Pump

Manufacturer: Total Finishing Supplies

Part Number: Medusa

Description: Introducing the Medusa™ 30:1 High Pressure Piston Pump, the latest advancement in our Total Finishing lineup. This versatile pump is available in configurations for both Airless and Air Assisted Airless applications. Built for durability, it features a robust air motor and tungsten carbide paint valves, ensuring minimal maintenance and exceptional longevity.

Designed to endure the demands of any job, the Medusa™ is equipped with PE + TG composition self-adjusting packings and a thick hard chrome-plated stainless steel fluid section. Its packing-free, anti-stalling pilot valve is consistently supplied with full air pressure, ensuring high-speed inversions and optimal performance, regardless of the working pressure.

Features:

Precision: Experience accurate spray patterns with minimal overspray, optimizing paint usage without the need for thinning.

Versatile Configurations: Choose from various setups, including cart or wall mount options, to find the perfect fit for your needs.

Innovative Design: Our high-pressure piston pumps feature a unique internal motor design and specialized discharge valves that drastically reduce ice formation and material buildup, guaranteeing outstanding performance and reliability.

Included with every pump! Cleans tips and air caps after a hard days work. Just leave them to soak in the bottle overnight and they’ll be fresh and ready for another day of spraying!

Included with every pump! 500ml/16.9oz. bottle of lubricating oil commonly used for the pump rod and seal.

Designed to endure the demands of any job, the Medusa™ is equipped with self-adjusting packings and a thick, hard chrome-plated stainless steel fluid section. Its packing-free, anti-stalling pilot valve is consistently supplied with full air pressure, ensuring high-speed inversions and optimal performance, regardless of the working pressure.

Pairing Options:
Enhance your MEDUSA™ pump by pairing it with any airless or air-assisted airless spray gun. For superior finish quality and performance, we recommend the spray gun from Total Finishing. If you need a reversible tip without compromising atomization quality, the spray gun is an excellent choice.

When you order a hose set with the pump, you’ll receive a 3/16” diameter high pressure fluid hose along with an ultra-flexible, urethane-reinforced 1/4” air hose, all wrapped in a durable nylon mesh cover. Choose between or lengths to suit your project requirements.

Explore the options to find the ideal setup for your finishing needs!

Specifications:

Free flow volume ltr/min (gal/min)	7 (1.85)
Ratio	30:1
Pump capacity per cycle (cc)	40
Piston diameter, air motor mm (in.)	100 (3.9)
Piston stroke, air motor mm (in.)	100 (3.9)
Max air pressure Bar (psi)	240 (3480)
Max air inlet pressure Bar (psi)	8 (116)
Weight Kg. (lbs.)	20 (44.1)

Literature:

Parts and Accessories:

Included with every pump!

Included with every pump!

Air Motor

Ref. No.	Part No.	Description
1a		Screw
1b		Washer
2		Cover
3		Filter screen
4		Porous baffle
5		Cover cpl.
5a		Internal bush
5b		Spacer
6		O-ring
7		Intermediate body
8a		Bolt
8b		Washer
9		Seal fuse
10		O-ring
11		O-ring
12		Small shaft
13		Spacer
14		Fuse
15		Sealing gasket
16		Central bush
17		Small shaft
18		Pilot valve block
19		Lower buffer
20		Self-lubricating bush
21		Sealing gasket
22		Gasket
23		Tracer point
24		Spring
25		O-ring
26		Body, tracer point
27		Upper flange
28		Conical plug
29a		Socket screw
29b		Washer
30		Seal gasket
31		O-ring
32		Tube air
33		Air cylinder
34		Air motor piston
35		Sealing gasket
36		Pilot valve rod
37		C-type retaining ring
38		Seat seal
39		Bush PTFE
40		O-ring
41		Lower flange
42		Air motor shaft

Pump Housing

Ref. No.	Part No.	Description
43		Spacer
44		Central body
45		Non-return valve
46		O-ring PTFE
47***		Upper packing
48		Conical spring
49a		Tie rod
49b		Washer
50		Cylinder
51		Seal O-ring
52		Plunging shaft
53		Cup spring
54		Spring
55***		Lower packing
56		Compression valve body
57**		Ball stop
58**		Ball d. 11, s.s.
59**		Copper gasket 1/4”
60**		Ball seat insert
61**		Ball seat body
62*		Suction valve complete
*		Suction valve complete
**		Compression valve guide
***		Kit – upper & lower packing
