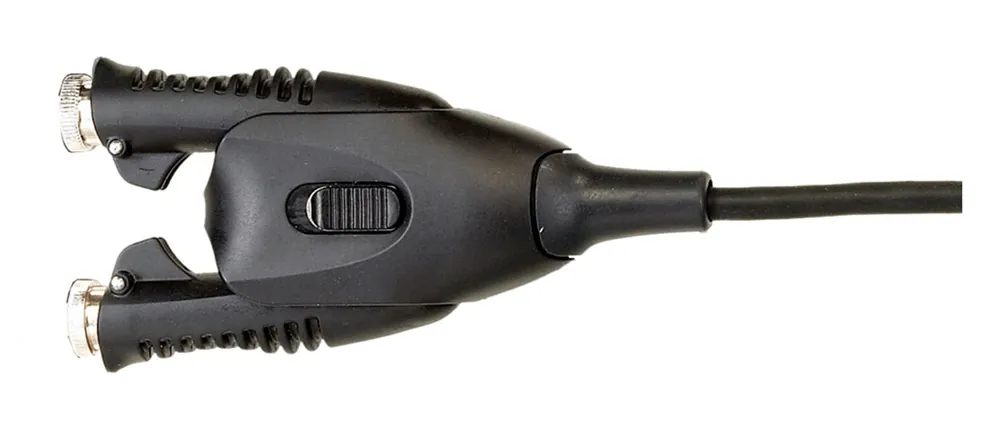

Metcal MFR-H4-TW Tweezer Cartridge Handpiece

Specifications

Input Line Voltage: 100 – 240 VAC, grounded circuit, 50/60 Hz

Rated Power Consumption: 70 W max.

Output Power: Variable, 60 W max.*

Output Frequency: 450 KHz

Heating Method: Induction, smartHeatR

Connections: Single Port

Power Supply Dim. W x D x H: 90 x 200 x 152.5 mm (3.5″ x 7.9″ x 6″)

Power Supply Weight: 2.3 kg (5.05 lb.)

Certification / Marking: cTUVus, CE

Tip-to- Ground Potential: < 2 mV

Tip-to-Ground Resistance: < 2 Ohm

Ground Detection: Permanent

Surface Resistivity: 10⁵ – 10⁹ Ohm

Idle Temperature Stability: 1.1°C ( 2°F) in still air

Tip Temperature Accuracy: Meets or exceeds IPC J-STD-001 Standard

Power Cord Length: 183 cm, 18/3 SJT

Warranty: 1 year

Ambient Operating Temp: 10 – 40°C (50 – 104°F)

Max. Enclosure Temp: 55 °C (131°F)
