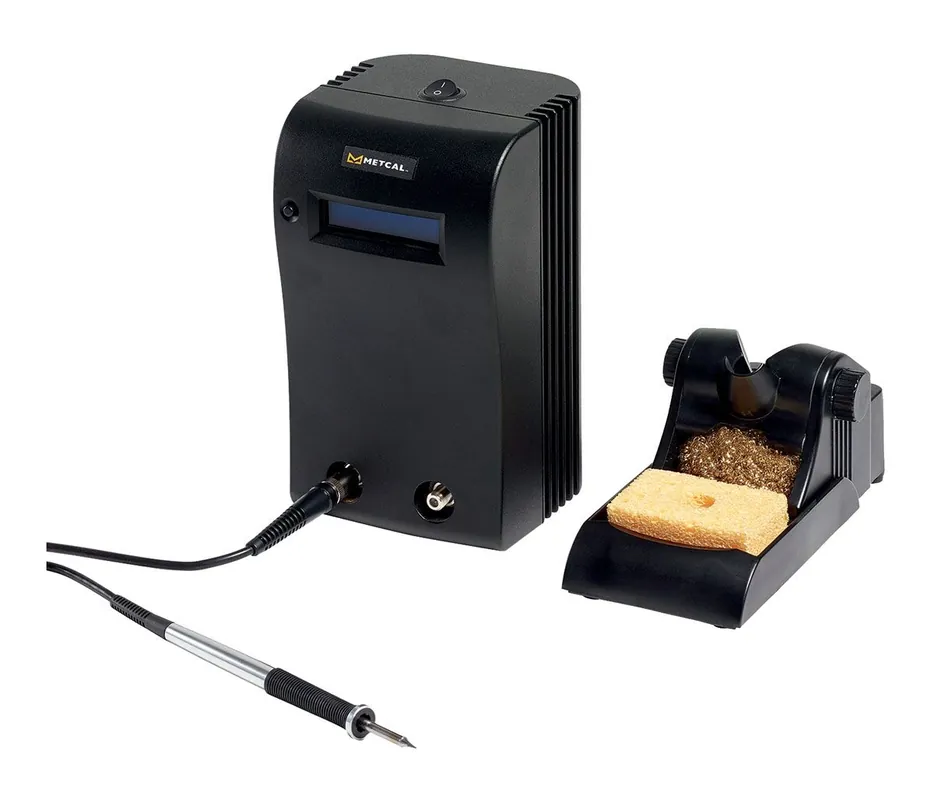

Metcal MX-500AV ESD-Safe Dual Output Programmable Advanced Soldering & Rework System

Specifications

Input Line Voltage: 100 – 240 VAC, grounded circuit, 50/60 Hz

Rated Power Consumption: 70 W max

Output Power: Variable, 40 W max*

Output Frequency: 13.56 MHz

Heating Method: Induction, SmartHeat®

Connections: Dual Port, switchable

Power Supply Dimensions (W x D x H): 4.8″ x 4.8″ x 8.7″ (121 x 121 x 220 mm

Power Supply Weight: 5.8 lbs. (2.65 kg)

Certification / Marking: cTUVus, CE

Tip-to- Ground Potential: < 2 mV

Tip-to-Ground Resistance: < 2 Ohm

Ground Detection: Permanent

Surface Resistivity: 10⁵ – 10⁹ Ohm

Idle Temperature Stability: 2°F (1.1°C) in still air

Tip Temperature Accuracy: Meets or exceeds IPC J-STD-001 Standard

Power Cord Length: 72″ (183 cm), 18/3 SJT

Warranty: 4 years

Ambient Operating Temp: 50-104°F (10-40°C)

Max. Enclosure Temp: 131°F (55°C)

Handpiece Cable Length: 72″ (183 cm), burn proof, ESD-safe

Handpiece – RF Connector: F-type power connector
