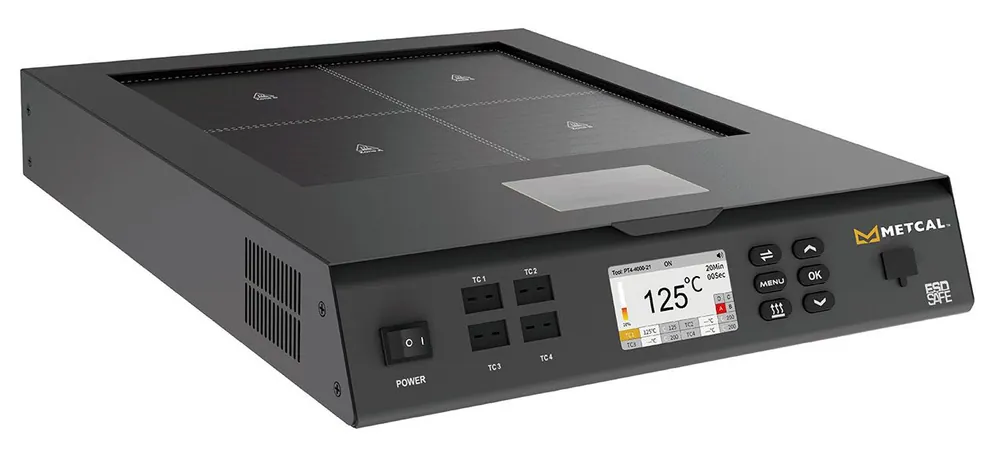

Metcal PT4-4000-11 1,700W 4‑Zone Preheater with 9.4″ x 9.4″ (240 x 240mm) Heating Area

The Metcal PT4-4000 Series 4-Zone Preheaters provide powerful, even heat for every application, from the most delicate to the most thermally demanding.

Specifications

Input Voltage: 120 V – 60 Hz

Power: 1700 W

Controllable Temperature Range: 122 °F – 482 °F (50 °C – 250 °C)

Surface Temperature Range: 77 °F – 1112 °F (25 °C – 600 °C)

Number of Heating Areas: 4

Heating Area (per zone): 5.7″ x 5.7″ / 120 x 120mm

Total Heating Area: 12.6″ x 16″ / 320 x 406mm

Temperature Sensors: 4 K-Type

Temperature Units: °F / °C

Heating Power Display: 0% – 100%

Temperature Compensation: ±122 °F / ±50 °C

Real-time Display: Temperature & Power

Zone Heating Control: On/Off

Profile Management: Learning/Import/Export

Heating Modes: Temperature/Power/Profile

Password Protection: Yes

Sound Function: On/Off

Temperature Lock: On/Off

Languages: EN/DE/ES/FR/CN/JP/KR

USB: Profile Import/Export Functionality

Display: 2.3″ / 58mm Color

Operating Environment: 32° – 104°F / 0° – 40°C, < 85% RH

Dimensions (L x W x H): 12.6″ x 16″ x 2.9″ / 320 x 406 x 73 mm

Weight (Main Unit): 10.8 lbs (4.9kg)
