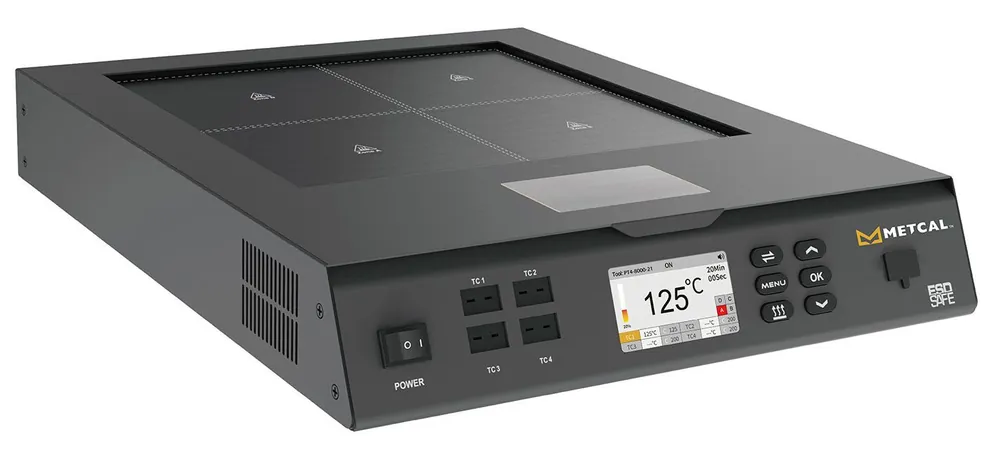

Metcal PT4-8000-11 4,000W 4‑Zone Preheater with 14.2″ x 15.8″ (360 x 400mm) Heating Area

The Metcal PT4-4000 Series 4-Zone Preheaters provide powerful, even heat for every application, from the most delicate to the most thermally demanding.

Specifications

Input Voltage: 208 V-60 Hz, 3Φ-4W, 120V-60 Hz, 1Φ

Power: 4000 W

Controllable Temperature Range: 122 °F – 482 °F (50 °C – 250 °C)

Surface Temperature Range: 77 °F – 1112 °F (25 °C – 600 °C)

Number of Heating Areas: 4

Heating Area (per zone): 7.1″ x 7.9″ / 180 x 200mm

Total Heating Area: 14.2″ x 15.8″ / 360 x 400mm

Temperature Sensors: 4 K-Type

Temperature Units: °F / °C

Heating Power Display: 0% – 100%

Temperature Compensation: ±122 °F / ±50 °C

Real-time Display: Temperature & Power

Zone Heating Control: On/Off

Profile Management: Learning/Import/Export

Heating Modes: Temperature/Power/Profile

Password Protection: Yes

Sound Function: On/Off

Temperature Lock: On/Off

Languages: EN/DE/ES/FR/CN/JP/KR

USB: Profile Import/Export Functionality

Display: 2.3″ / 58mm Color

Operating Environment: 32° – 104°F / 0° – 40°C, < 85% RH

Dimensions (L x W x H): 24.1″ x 17.7″ x 2.9″ / 612 x 450 x 73 mm

Weight (Main Unit): 20.2 lbs (9.1

kg)
