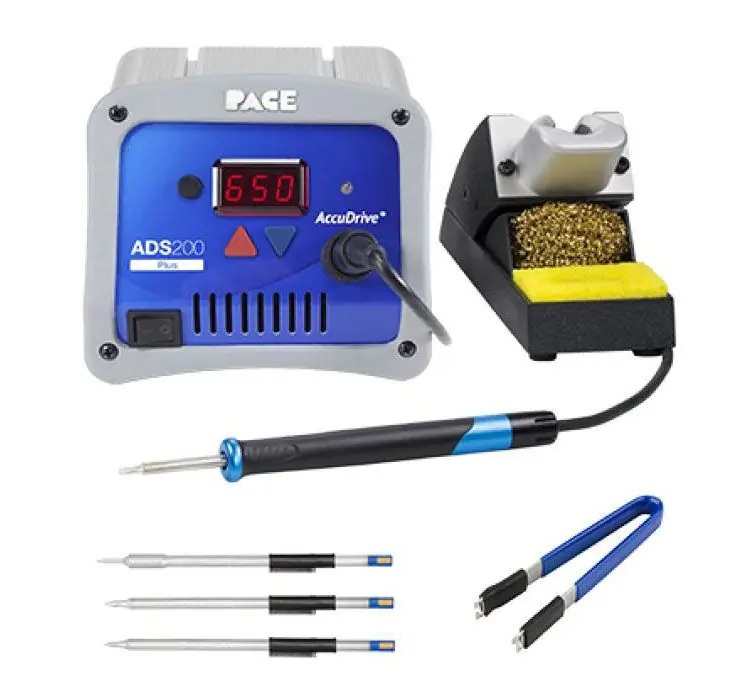

PACE 8007-0593 ADS 200 PLUS AccuDrive® 120V Soldering Station with ISB Cubby

At the heart of the ADS200 lies PACE’s AccuDrive® temperature control technology, which delivers unsurpassed thermal performance and highly accurate temperatures, without the need to change tip cartridges or calibrate. Its advanced electronics provide instantaneous load sensing and on-demand power to quickly reflow solder joints at the lowest, safest temperature required, regardless of the mass of the application. Intended for extreme, multi-shift production use, the ADS200 features a rugged, all-metal design, including housing, soldering iron and tool stand. The system is intuitive and easy to operate – just power it on, set the temperature with arrow keys and start soldering.

Specifications

Dimensions: 4.1″ H x 5.1″ W x 6″ D (104 x 130 x 152mm)

Weight: 2.3kg (5 lbs.)

RoHS Compliant: Yes

Control Technology: AccuDrive™

Tip-to-Ground Resistance: 2 Ohms or less

Meets or Exceeds ANSI/J-STD-001: Yes

Tested using ANSI/ESD S13.1-2015: Yes. Tested up to 50MHz using S13.1-2015 Method. Meets or Exceeds J-STD-001 and ESD S20.20 Requirements

Meets or Exceeds ANSI/ESD S20.20: Yes

Temperature Accuracy: Meets or Exceeds ANSI/J-STD-001 Requirements

Temperature Range: 193-454°C (380-850°F)

Tips: Uses AccuDrive Blue Series Tip-Heater Cartridges

Soldering Iron: TD-200 AccuDrive™ Tip-Heater Cartridge Soldering Iron

Tool Stand: Can hold up to 7 tips, comes standard with sponge, staymoist well and brass wool to clean oxidation from tip
