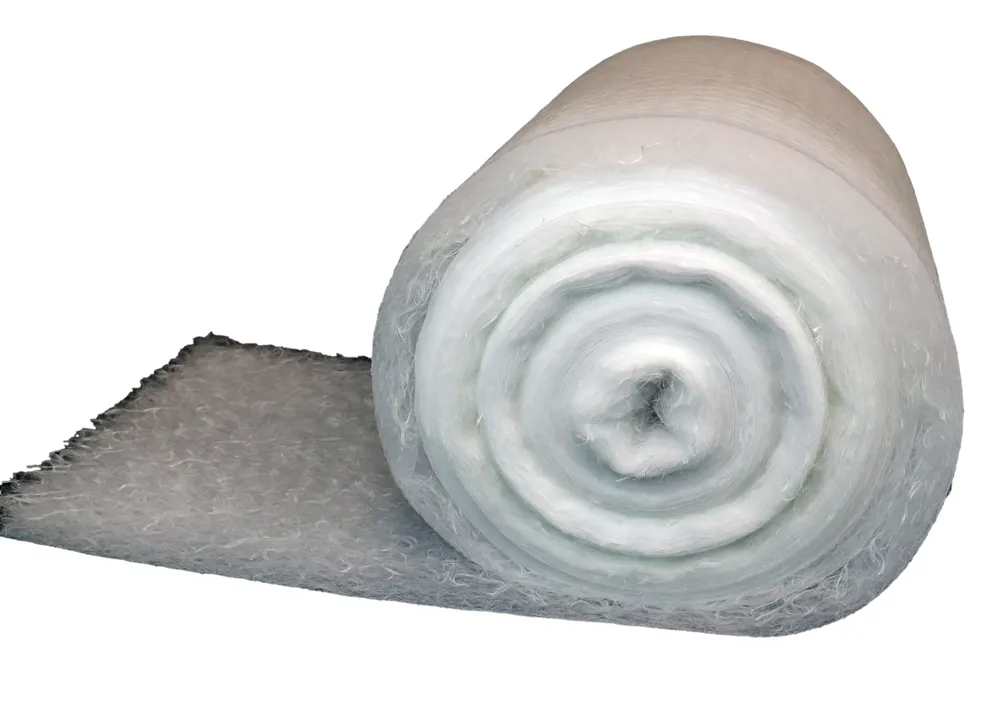

Paint Hog Fiberglass Paint Arrestor Roll

The lowest total cost of ownership in the industry.

Superior paint holding capacity

Low operating resistance to airflow

Fewer filter change-outs and fewer filters in the landfill

Highly compressible–reducing shipping and warehousing costs

Exceeds EPA standards (40 CFR Part 63)

California Proposition 65 compliant

is a new breed of paint exhaust filtration media with best in class paint holding capacity, high efficiency and lowest operating costs, and resistance to airflow.

Paint Hog holds the most paint which means:

Longer service life

Fewer filter change-outs

Lower operating costs

Fewer filters in the landfill

Paint Hog is highly compressible which saves shipping and warehousing costs.

Performance Measure	Paint Hog Paint Arrestor Media
Initial Resistance (150 fpm) *	0.03
Paint Holding Capacity @ 0.25” Final Resistance (PH35)	7.2lbs
Average Removal Efficiency *	99.25%
* Data per Blue Heaven Technologies Test No. 19-291-1

Specification

Description: 2.5 x (Specified Width) White PA

Thickness: Nominal 2 ½ Inches

Media Weight: Nominal 35 grams/square foot (Glass & Binder)

Additives: N/A

Binder Percent: Nominal 38%

Roll Length: 200’

Slit Width: As Specified

Standard Color: White Spray

Removal Efficiency & Paint Holding Capacity:

Initial Pressure Drop (Clean Filter) …………………… 0.05 in. water

Final Pressure Drop (Loaded Filter) …………………. 0.25 in. water

Paint Holding Capacity (Loaded Filter) …………… 3,287g (7.25#)

Average Removal Efficiency of Test Filter ………. 99.87%

Freight Cost is per Roll.

**For Quantities of 3 or More, Please Contact Us for Special Freight Pricing**
