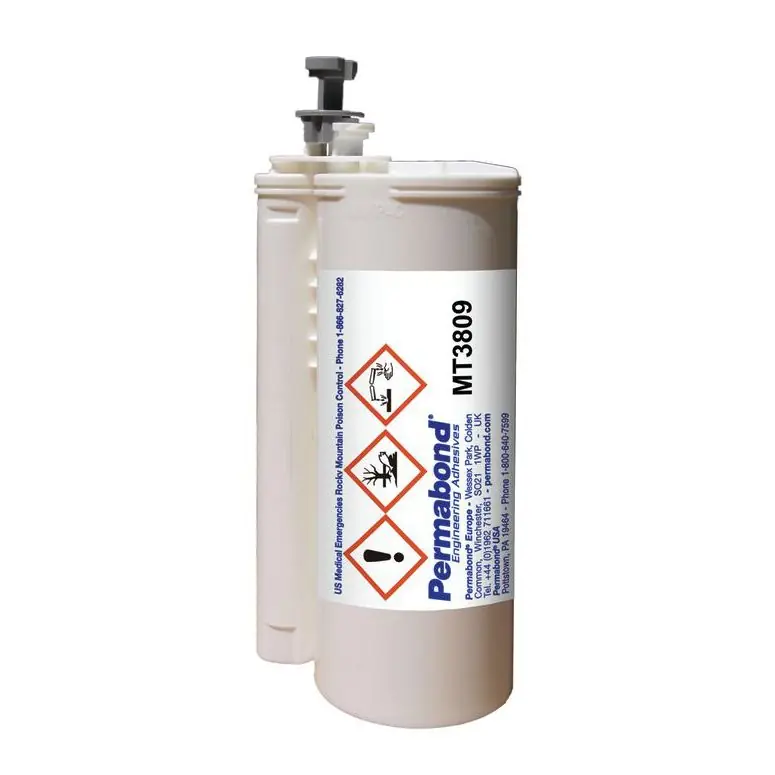

Permabond MT3809 10 1 Self-Leveling Modified Two-Part Epoxy with >60 min. Pot Life, Black, 490ml Cartridge (Case of 6)

Physical Properties of Uncured Adhesive

	MT3809A	MT3809B
Chemical Composition	Epoxy based resin	Polyamine based Hardener
Appearance	Gray	Black
Mixed Appearance	Charcoal black
Viscosity @25°C	20rpm: 6,000-10,000 mPa.s (cP) 2rpm: 15,000-25,000 mPa.s (cP)	5,000-10,000 mPa.s (cP)
Specific Gravity	1.3	1.1

Typical Curing Properties

Mix ratio: 10:1 by volume, 12.5:1 by weight

Usable / pot life @25°C: 10-12 mins

Handling time to 0.1 N/mm² @25°C: 25-30 mins

Full cure @25°C: ≥72 hour

Typical Performance of Cured Adhesive

Shear strength (ISO4587)

Mild steel: 6 – 8 N/mm² (900 – 1200psi)

ABS: 4-6 N/mm² (600-900psi)

Acrylic: 3-5 N/mm² (400-700psi)

Nylon: 3-5 N/mm² (400-700psi)

Polycarbonate: 5-7 N/mm² (700-1000psi)

PVC: 3-5 N/mm² (400-700psi)

Hardness (ISO868):

75-85 Shore A

20-30 Shore D

Elongation at break (ISO37): 150%

Peel strength (aluminum) (ISO4578): 60-80 N/25mm (13-18 PIW)

*Strength results will vary depending on the level of surface preparation and gap.

Product Overview

More Information

Sold As	(Case of 6)
SKU	I376933
Part No.	MT038090490C0101
Brand	Permabond
Type	Two-Part Epoxy
Volume	490ml
