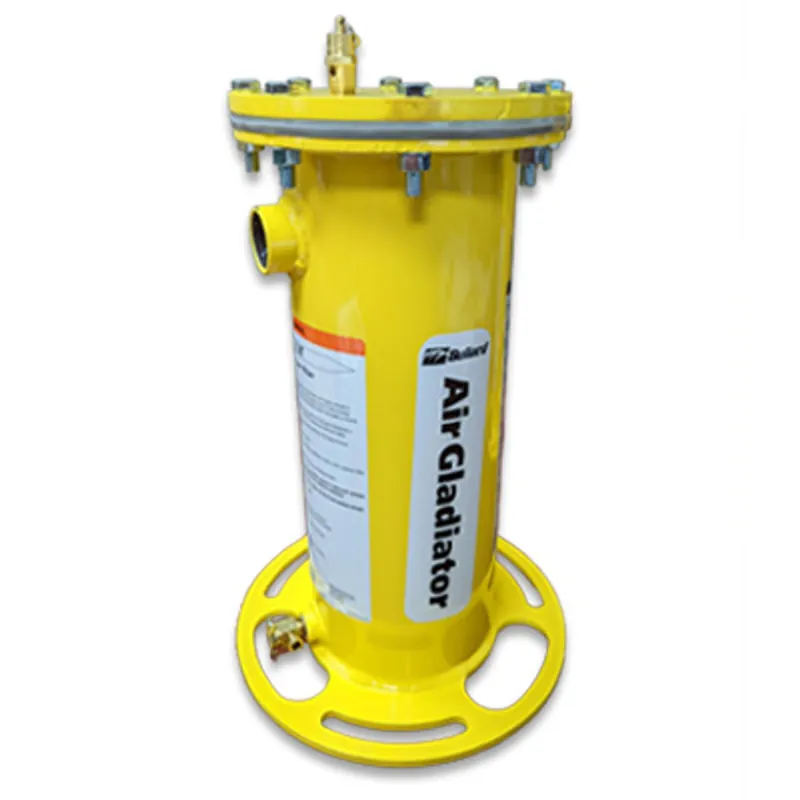

Pirate Brand – BULLARD®, AirGladiator Series, Filter Assembly, Single-Outlet Filter With Relief Valve (1 Hose Adaptor Fitting)

Pirate Brand – BULLARD®, AirGladiator Series, Filter Assembly, Single-Outlet Filter With Relief Valve

(1 Hose Adaptor Fitting)

Manufacturer: Pirate Brand

Part Number: AGLDTR1

Description: BULLARD AIRGLADIATOR SERIES, FILTER ASSEMBLY, SINGLE-OUTLET FILTER WITH RELIEF VALVE (1 HOSE ADAPTER FITTING)

CARBON MONOXIDE – THIS FILTER DOES NOT REMOVE CARBON MONOXIDE.

GRADE D AIR – FILTRATION UNITS SUCH AS THIS FILTER CAN’T CREATE OSHA GRADE D AIR FROM ANY SOURCE BECAUSE GRADE D AIR REQUIREMENTS INCLUDE OXYGEN CONTENT, HYDROCARBONS, CARBON MONOXIDE & CARBON DIOXIDE SPECIFICATIONS.

INCLUDES 41AF FILTER CARTRIDGE

MAX. AIR FLOW RATE: 100 CFM* (2830 LPM)

INLET AIR CONNECTOR ON THIS FILTER IS A 1″ NPT FEMALE CONNECTOR – A “USER-SUPPLIED” PRESSURE REGULATOR IS RECOMMENDED TO BE INSTALLED AT THIS CONNECTION

OUTLET AIR CONNECTOR ON THIS FILTER IS A 3/8″ NPT FEMALE CONNECTOR – A “USER-SUPPLIED” PRESSURE GAUGE IS RECOMMENDED TO BE INSTALLED AT THIS CONNECTION ALONG WITHANY OUTLET AIR PIPING SYSTEM

*AT MAXIMUM RECOMMENDED PRESSURE OF 100 PSIG (6.9 BAR)

Literature:
