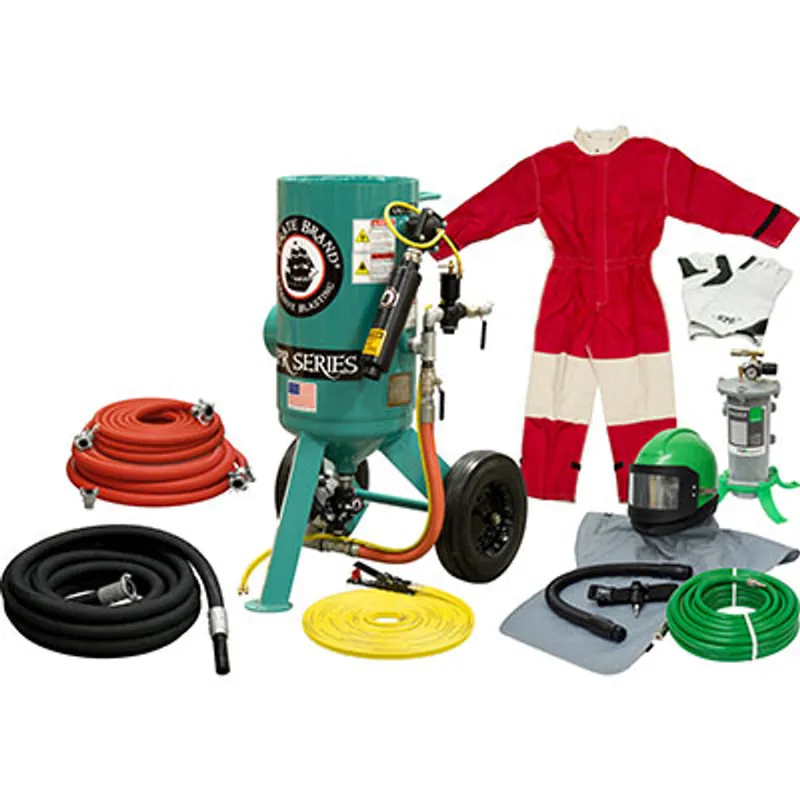

Pirate Brand, C-SERIES, 3 cu ft., GOLD Blasting Package – Blast Pot, Portable, Pressure RELEASE System, Pneumatic Controls w/AMV II™ Metering Valve

Pirate Brand, C-SERIES, 3 cu ft., GOLD Blasting Package – Blast Pot, Portable, Pressure RELEASE System, Pneumatic Controls w/AMV II™ Metering Valve

Manufacturer: Pirate Brand

Part Number: 201-1780-D

Description: BLAST POT, PORTABLE, 3.0 CU FT, PRESSURE RELEASE, PNEUMATIC, GOLD BLASTING PACKAGE

Includes:

50′ Twinline Assembly

Pneumatic Control Handle

50’ Blast Hose Assembly

Tungsten-Carbide Nozzle

Blast Suit

Blast Gloves

RPB® Nova 2000™ Respirator

RPB® Radex Airline Filter™

50’ Breathing Air Hose

Air Hose Assembly For Blaster

Air Hose Assembly For Breathing Filter

AMV II™ Metering Valve

Product Highlights:

A. 3.0 CU. FT. CAPACITY (85 LITERS)
1. 150 PSI VESSEL (10.3 BAR)
2. A.S.M.E. SECTION VIII DIVISION 1
3. CRN FOR ALL PROVINCES
B. PRESSURE RELEASE SYSTEM
1. AUTOMATICALLY BLOWS DOWN THE VESSEL WHEN CONTROL HANDLE IS RELEASED
2. 1″ INLET VALVE
3. 1″ DIAPHRAGM OUTLET VALVE
C. 1″ GALVANIZED PIPING FOR CORROSION RESISTANCE
D. HEAVY DUTY FULL PORT BALL VALVES
E. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
F. PUSHER LINE INCLUDES JIC FITTINGS ELIMINATING GASKET PROBLEMS
G. AMVII(TM) X-TREME DUTY METERING VALVE
1. STAINLESS STEEL METERING PLATE
2. ROBUST IRON HOUSING
3. THIS ONE WORKS WITH STEEL GRIT
4. NYLON WIPER SEALS ON BOTH SIDES OF METERING PLATE (PREVENTS ABRASIVE FROM ENTERING HOUSING AND CAUSING JAMS)
5. LARGE CLEAN-OUT/INSPECTION PORT & DRAIN PORT ARE PROVIDED FOR GREATLY IMPROVED SERVICING & MAINTENANCE
6. PURGE PORT ALLOWS A COMPRESSED AIR SUPPLY TO BE CONNECTED TO ASSIST IN FLUSHING OUT ANY BLOCKAGES THROUGH THE DRAIN PORT
7. IMPROVED HANDLE DESIGN – HEAVY DUTY
8. IMPROVED SEALING OF THE METERING PLATE STEM USING A COMBINATION OF LIP SEALS AND O-RINGS

Compatible with the following OEM manufacturers –

OEM Manufacturer	Part No.
CLEMCO INDUSTRIES / AEROLYTE SYSTEMS / ZERO PRODUCTS	01178

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.

Literature:

You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
