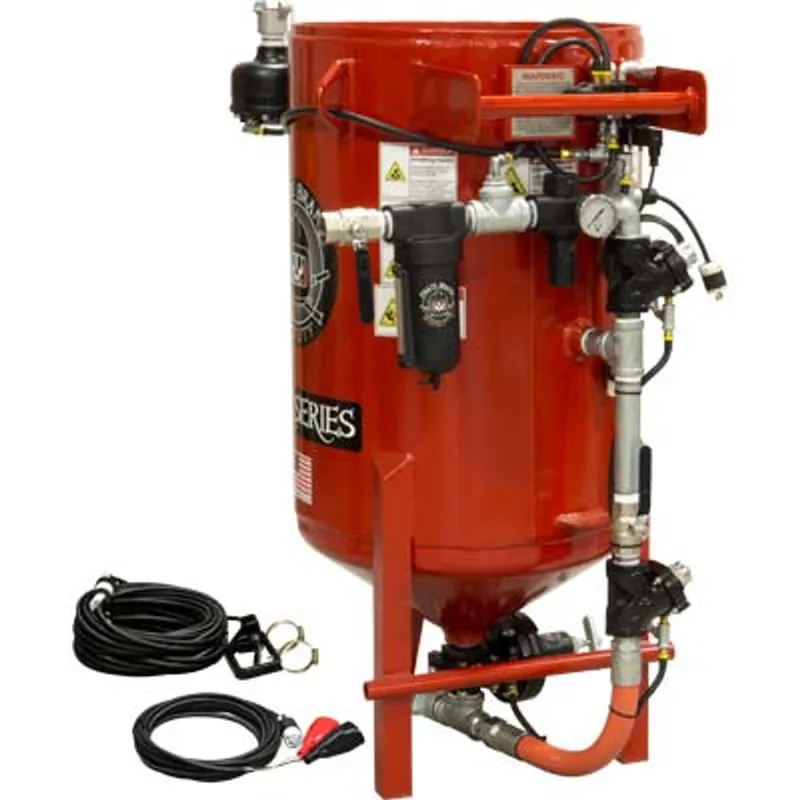

Pirate Brand, E-Series, BLAST ROOM SERIES, 6.5 cu ft., Blast Pot, STATIONARY, Pressure RELEASE System, 12VDC Electric Controls

Pirate Brand, E-Series, BLAST ROOM SERIES, 6.5 cu ft., Blast Pot, STATIONARY, Pressure RELEASE System, 12VDC Electric Controls

Manufacturer: Pirate Brand

Part Number: 235-651-EDC

Description: BLAST POT, BLAST ROOM, E-SERIES, 6.5 CU FT, PRESSURE RELEASE, ELECTRIC 12VDC

! WHEN USING STEEL ABRASIVES, SEALED CONNECTOR(S) (PB-31131) ARE REQUIRED

Includes:

EPR Stationary Blast Room Series Blaster w/ 12VDC Electric Controls, 120VAC Door Interlock. Pressure Regulator & Automatic Pinch Metering Valve

110′ Electric Control Cord w/ Connectors

Electric D-Handle Control

Product Highlights:

A. 6.5 CU. FT. CAPACITY (185 LITERS)
1. 150 PSI VESSEL (10.3 BAR)
2. A.S.M.E. SECTION VIII DIVISION 1
3. CRN FOR ALL PROVINCES
B. PRESSURE RELEASE SYSTEM
1. AUTOMATICALLY BLOWS DOWN THE VESSEL WHEN CONTROL HANDLE IS RELEASED
C. 50 MICRON AIR FILTER
D. PRESSURE REGULATOR
E. 1-1/4″ GALVANIZED PIPING FOR CORROSION RESISTANCE
F. HEAVY DUTY FULL PORT BALL VALVES
G. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
H. PUSHER LINE INCLUDES JIC FITTINGS ELIMINATING GASKET PROBLEMS
I. AUTOMATIC PINCH VALVE W/X-TREME DUTY™ PINCH TUBE
1. LONGER WEAR LIFE
2. 100% GUM RUBBER
3. CARBON BLACK FOR STATIC DISSIPATION
J. #8 EXHAUST VALVE W/X-TREME DUTY™ BALL & BORON CARBIDE RESTRICTOR NOZZLE FOR LONGER SERVICE LIFE
K. ABRASIVE UMBRELLA INCLUDED FOR STATIONARY APPLICATIONS
L. 6″ FAST-FILL™ POPUP FOR QUICKER ABRASIVE FILLING
M. 120VAC BLAST ROOM DOOR INTERLOCK

Compatible with the following OEM manufacturers –

OEM Manufacturer	Part No.
EMPIRE ABRASIVE EQUIPMENT COMPANY	235651

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.

Literature:

You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
