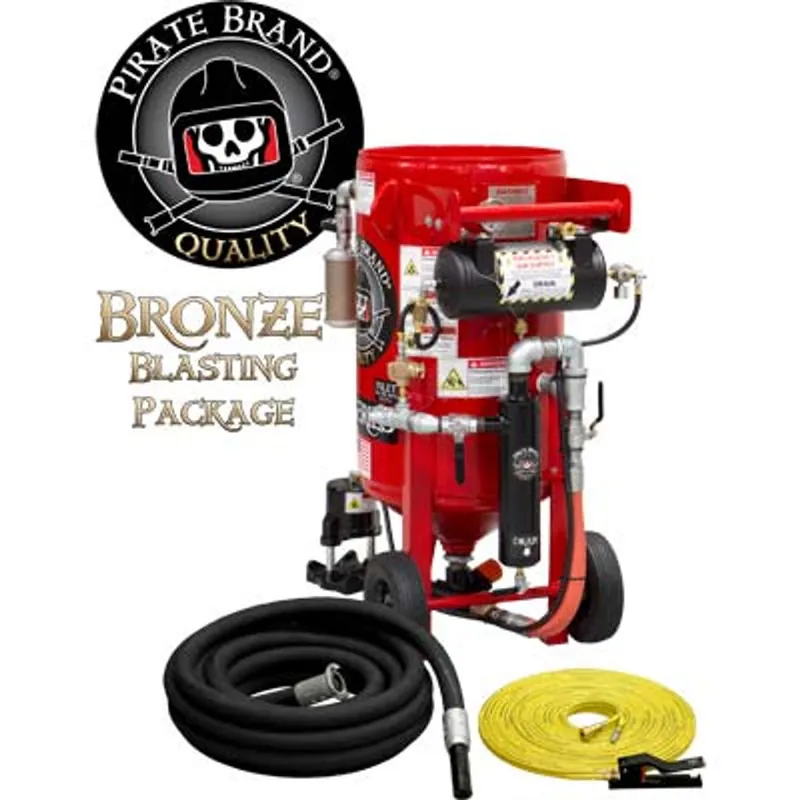

Pirate Brand, K-Series, 3.5 cu ft., BRONZE Blasting Package – Blast Pot, Portable, Pressure HOLD System, Pneumatic Controls w/ MPV Metering Valve

Pirate Brand, K-Series, 3.5 cu ft., BRONZE Blasting Package – Blast Pot, Portable, Pressure HOLD System, Pneumatic Controls w/ MPV Metering Valve

Manufacturer: Pirate Brand

Part Number: 41-300-MPV-B

Description: BLAST POT, PORTABLE, K-SERIES, 3.5 CU FT, PRESSURE HOLD SYSTEM, PNEUMATIC, BRONZE BLAST. PKG

Includes:

KPH Portable Blaster w/ Pneumatic Controls & MPV Metering Valve

55’ Pneumatic Control Twinline

Pneumatic #2 Control Handle

50’ Blast Hose Assembly w/ Couplings

Tungsten-Carbide Nozzle

Product Highlights:

A. 3.5 CU. FT. CAPACITY (100 LITERS)
1. 150 PSI VESSEL (10.3 BAR)
2. A.S.M.E. SECTION VIII DIVISION 1
3. CRN FOR ALL PROVINCES
B. PRESSURE HOLD SYSTEM
1. VESSEL REMAINS PRESSURIZED WHEN THE CONTROL HANDLE IS RELEASED
2. SMOOTHER STARTS AND STOPS COMPARED TO A PRESSURE RELEASE SYSTEM
C. EMERGENCY AIR TANK – A CONSTANT SOURCE OF COMPRESSED AIR IS REQUIRED TO KEEP THE PINCH VALVE CLOSED. TO PROTECT USERS IN THE EVENT A COMPRESSOR FAILS OR RUNS OUT OF FUEL, ALL KPH SERIES BLASTERS FEATURE AN EMERGENCY AIR TANK THAT ACTS AS A RESERVE TO KEEP THE PINCH VALVE CLOSED. IMPROVEMENT OVER LEGACY DESIGN.
D. HEAVY DUTY MOISTURE SEPARATOR
E. 1″ GALVANIZED PIPING FOR CORROSION RESISTANCE
F. HEAVY DUTY FULL PORT BALL VALVES
G. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
H. PUSHER LINE INCLUDES JIC FITTINGS ELIMINATING GASKET PROBLEMS
I. MPV METERING VALVE / #400 PINCH VALVE
1. MANUAL PLUNGER VALVE (MPV) IS A SIMPLE RELIABLE DESIGN THAT PROVIDES A WIDE RANGE OF ADJUSTMENT OF ABRASIVE FLOW TO THE NOZZLE
2. THE #400 PINCH VALVE IS RESPONSIBLE FOR STARTING & STOPPING THE FLOW OF AIR AND ABRASIVE.
J. BAG-BREAKER AND SCREEN INCLUDED STANDARD OVER THE POP-UP
K. BLOW-DOWN MUFFLER INCLUDED TO REDUCE NOISE DURING DEPRESSURIZATION
L. 6″ FAST-FILL POPUP FOR QUICKER ABRASIVE FILLING

Compatible with the following OEM manufacturers –

OEM Manufacturer	Part No.
KEY HOUSTON	40300
KEY HOUSTON	P-300

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.

Literature:

You will be contacted with a freight quote for shipping. Forklift may be required at time of delivery
