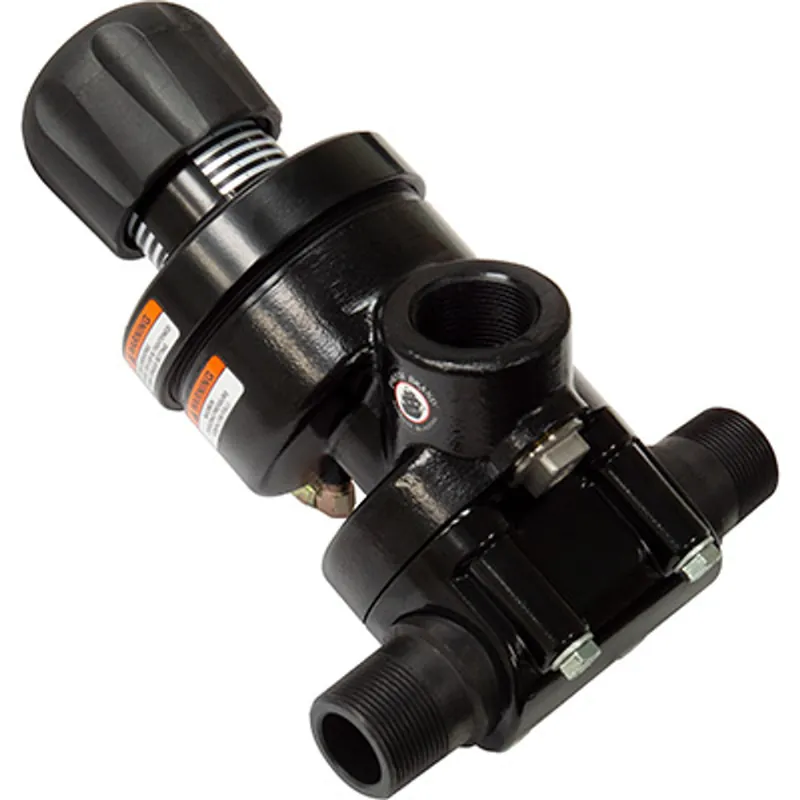

Pirate Brand – Schmidt Mfg Style, APV II Abrasive Metering Valve, 1-1/4″

Pirate Brand – Schmidt Mfg Style, APV II Abrasive Metering Valve, 1-1/4″

Manufacturer: Pirate Brand

Part Numbers: 888-2148-007PB

Description:

APV II ABRASIVE METERING VALVE, 1-1/4″, SOLID TUNGSTEN CARBIDE SLEEVE, 1-1/4″ NPT BLAST POT CONNECTION, 1-1/4″ MALE NPT x 1-1/4″ MALE NPT NIPPLE

ABRASIVE ADJUSTMENT INDICATOR (AAI) ALLOWS YOU A VISUAL METHOD OF ADJUSTMENT

HEXAGON CAST INTO VALVE FOR EASE OF ASSEMBLY AND DISASSEMBLY

BREATHER HOLE RELOCATED AND FILTER ADDED TO PREVENT ABRASIVE DUST FROM ENTERING CHAMBER

INCREASED SPRING FORCE FOR QUICKER ACTUATION WHICH IMPROVES SEAL AND SEAT LIFE

IMPROVED PISTON AND SEAL DESIGN TO INCREASE RELIABILITY AND ENSURE SMOOTH PISTON TRAVEL

SOLID MACHINED TUNGSTEN CARBIDE/STAINLESS PLUNGER PROVIDES FAR SUPERIOR WEAR RATES 100% CONSISTENT TOLERANCES, AND CORROSION RESISTANCES

CLEAN OUT PORT 1″ NPT W/ STAINLESS PLUG

QUADRUPLE URETHANE PLUNGER SEAL ARRANGEMENT SOLVES THE AIR & ABRASIVE CARRY OVER PROBLEM AS WELL AS THE PLUNGER AND SLEEVE JAMMING PROBLEM NORMALLY ASSOCIATED WITH REGULATED LOW PRESSURE BLASTING APPLICATIONS AND/OR THE USE OF STEEL ABRASIVE

SOLID MACHINED TUNGSTEN CARBIDE SLEEVE PROVIDES FAR SUPERIOR WEAR RATES AND 100% CONSISTENT TOLERANCES

PLUNGER SEAL DESIGN IMPROVED FOR BETTER SEALING AND LONGER LIFE

ALL PIPE NIPPLES ARE HARDENED TO 55 HRC FOR EXTENDED SERVICE LIFE

DIE CAST ALUMINUM PARTS ARE ANODIZED AND POWDER COATED FOR A CORROSION RESISTANT AND DURABLE FINISH

REQUIRES 90 PSI SIGNAL LINE PRESSURE FOR FULL OPEN OPERATION

! APVII COMPONENTS ARE NOT INTERCHANGEABLE WITH SCHMIDT® THOMPSON VALVE II WITH THE EXCEPTION OF THE 2014-300 VENT AND 2148-000-04 PISTON SEAL.

Compatible with the following OEM manufacturers –

OEM Manufacturer	OEM Part No.
SCHMIDT MANUFACTURING / U.S. FILTER / AXXIOM MANUFACTURING	2152-007

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.
