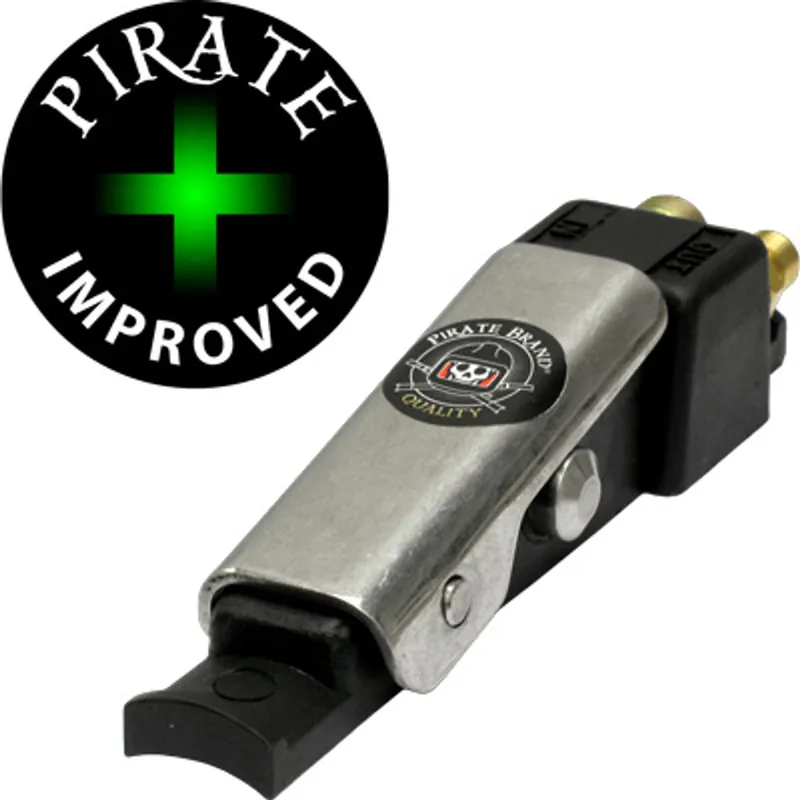

Pirate Brand – Schmidt Mfg Style, Handle, Control, Pneumatic (Deadman Control Handle)

Pirate Brand – Schmidt Mfg Style, Handle, Control, Pneumatic (Deadman Control Handle)

Manufacturer: Pirate Brand

Part #: 888-2263-000PB

Description: HANDLE, CONTROL, PNEUMATIC (DEADMAN CONTROL HANDLE)

NOT FOR USE WITH STEEL GRIT

CURVED BASE FITS TO CONTOUR OF BLAST HOSE

DIFFERENT SIZED FITTINGS PREVENT ACCIDENTAL REVERSE HOOK-UP

PROPER REMOTE CONTROL ATTACHMENT INSTRUCTIONS
ATTACH THE REMOTE CONTROL HANDLE TO THE BLAST HOSE NEAR THE NOZZLE WITH HOSE CLAMPS OR HEAVY WIRE TIES. FORM A LOOP OF TWINLINE/CONTROL CORD THAT COMES 6″ AWAY FROM THE BLAST HOSE, RUNS 6″ PARALLEL TO THE BLAST HOSE, AND COMES 6″ BACK TO THE BLAST HOSE. USING DUCT TAPE, ATTACH THE TWINLINE/CONTROL CORD TO THE BLAST HOSE WHERE THE LOOP ENDS BY WRAPPING THE TAPE AROUND THE TWINLINE/CONTROL CORD TWICE AND THEN AROUND THE BLAST HOSE. THIS CREATES A STRAIN-RELIEF ATTACHMENT AND IS ONLY NECESSARY ON THE FIRST CONNECTION NEAR THE CONTROL HANDLE. STARTING FROM THE NOZZLE END OF THE BLAST HOSE, ATTACH THE TWINLINE/CONTROL CORD TO THE BLAST HOSE BY WRAPPING DUCT TAPE AROUND BOTH EVERY 3 FEET.

Compatible with the following OEM manufacturers –

OEM Manufacturer	Part No.
SCHMIDT MANUFACTURING / U.S. FILTER / AXXIOM MANUFACTURING	2263-000

TFS is not affiliated with nor is it endorsed by the above manufacturer(s). The product depicted above is not produced or authorized by the above manufacturer(s), with the exception of Forecast Sales/Pirate Brand.

Literature:
