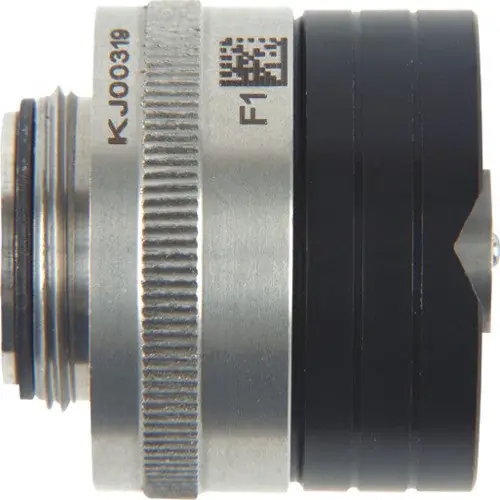

Plug In Integral Probe (PINIP™) Non-Ferrous Substrate Probe Scale 2 Elcometer 456

Plug In Integral Probe (PINIP™) Non-Ferrous Substrate Probe | Scale 2 | Elcometer 456

Manufacturer: Elcometer

Part #: T456CN2P

Description: Designed to work with any of our Non-Ferrous or Dual FNF Elcometer 456 Separate Gauges.

For higher resolution & accuracy on thin coatings Scale 2 gauges can be switched to the Scale 1 mode measurement performance.

Probe attaches to a separate gage to give it the performance and profile of an integral probe gauge.

Specifications:

Range: 0-200 mils (0-5mm)

Accuracy: ±1-3% or ±1.0 mil (±20µm)

Resolution: 0.1 mil: 0-50 mils; 1mil: 50-200 mils (1µm: 0-1mm; 10µm: 1-5mm)

Minimum convex surface radius – 100mm (3.97″)

Minimum concave surface radius – 150mm (5.90″)

Minimum headroom – 185mm (7.28″)

Minimum sample diameter: – 14mm (0.55″)
