Uses a Chopper-Stabilized Sensor The PFM-711B is an accurate, portable electrostatic field measuring device that is easy to use and designed for one hand operation. The PFM-711B is a digital, electronic chopper design, which allows the instrument to make electrostatic field measurements in areas where ionized air is present. Used by itself, the PFM-711B will measure electrostatic fields emanating from virtually any flat surface or object.
Measure in 1 Volt and 10 Volt Increments The PFM-711B uses a dual range for measuring surface voltage and electrostatic potentials in both positive and negative polarity charges. In the kV/Inch range, the PFM-711B will indicate electrostatic field voltage from 0 to ±20,000 volts in 10 volt increments at 1″ (25mm) distance from the charged surface. In the V/Inch range, the field meter measures field density from 0 to ±1,999 volts in 1 volt increments at 1″ (25mm) distance from the charged surface. The instrument is easy to use and its controls are designed for one hand operation.
Provides a Ground Reference The PFM-711B Field meter case is conductive. It provides the ground reference for its measuring circuit. For accurate measurements, it is necessary that the person holding the meter be properly grounded, or the meter has a ground connection made to the 10 mm snap fastener mounted on back of case. Ground the case by wearing a functional wrist strap that is properly grounded. Turn the meter on and select the desired range. Adjust the display to zero (0) volts by pressing the ZERO control.
Bulls Eye for Accurate Measurements The ranging lights help position the instrument for accurate measurements. Align the front sensor of the PFM-711B Field Meter approximately 1″ (25mm) from the surface or object being measured. Move the instrument toward, or away from the surface until the ranging lights are focused on the test surface. Once the field meter is properly positioned, the PFM-711B will indicate the electrostatic field measured on its display.
Use it with a Recording Device The PFM-711B is the most flexible field meter in the ESD control marketplace. Combined with a variety of accessories, it can perform many different measurements to analyze the static sensitive process or environment. The analog output allows documentation of measurements when used in conjunction with X-Y plotter, analog data recording device, or the Prostat PGA-710B Autoanalysis System. (Recording device and cable not included.)
Long Lasting Battery The PFM-711B uses a 9 volt alkaline battery (included), which provides an approximate life of 30 hours. The display is designed to indicate when the battery is low. The low battery indicator is conveniently programmed to come in at 7.2 DC volts, which is the minimum voltage required for accurate measurements.

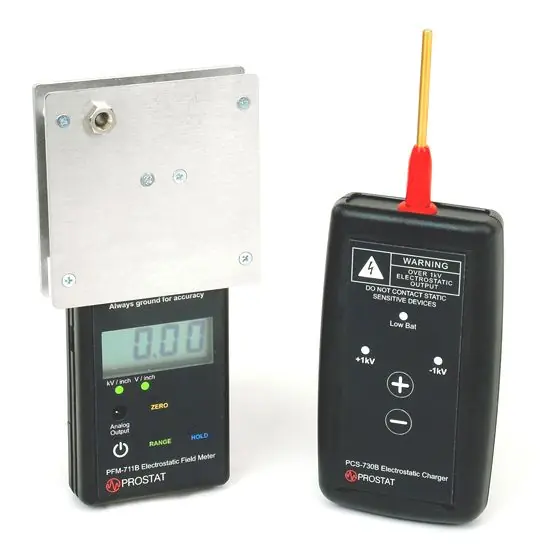

Portable Charge Plate Monitor The CPM-720B Charge Plate Assembly is a 3.25″ x 3.25″ isolated plate attachment for the PFM-711B Electrostatic Field Meter. It converts the PFM-711B Field Meter into a portable, battery operated charged plate monitor. By attaching a CPM-720B Charge Plate to the PFM-711B, the meter can also be used for Ion Balance voltage measurements.
Charge It Up! The PCS-730B can be used to place a ±1000V charge on the CPM-720B Charge Plate making it possible to also measure the discharge times of air ionization equipment per ANSI/ESD SP3.3 Periodic Verification of Air Ionizers.
Technical Specifications
PFM-711B Electrostatic Field Meter Specifications
Performance
Overall Range:
Low Range: 0 V to ±1999 V
High Range: 0 V to ±19.99 kV
Accuracy:
Voltage Monitor Output: Better than ±5% of reading, ±10 mV
Voltage Display: Better than ±5% of reading, ±2 counts
Stability: ±10 counts
Voltage Monitor
Output: ±20.0 kV meter reading equals ±2.0 Volt output
Ratio:
Low Range: 0 to 2,000 volts is equal to ±0.2 volts output
High Range: 0 to 20,000 volts is equal to ±2 volts output
Front Panel
Display:
Number of Characters: 3.5 digits
Character Format: 7-Segment
Character Size: 12.70mm H x 7.62mm W
Automatic polarity, LOW BATTERY indicator
Range:
V / Inch: 0 to ±1999 V / inch
kV / Inch: 0 to ±19.99 kV / inch
Display Resolution:
Low Range: 1 Volt increment
High Range: 10 Volts increments
Sampling Rate: Display readings are updated every 0.5 seconds. Analog readings are taken every 100mS, or 10 times per second
Low Battery: Low battery indicator comes on at 7.4 Volts
Size (with ground snap attached): 27.2 mm H x 61.5 mm W x 105.9 mm L (1.07″ H x 2.41″ W x 4.17″ L)
Weight: 142 g (5.0 oz.) with battery
Warranty:
2 years on circuit board, display and membrane
1 year on sensor2
1 Typical specifications are not guaranteed. 2 Warranty on the sensor limited to a defective sensor that was not dropped or used for measuring a source greater than 20kV.
