Measure worksurfaces, equipment, garments, furniture and flooring
Wide Range. Accurate. Portable.

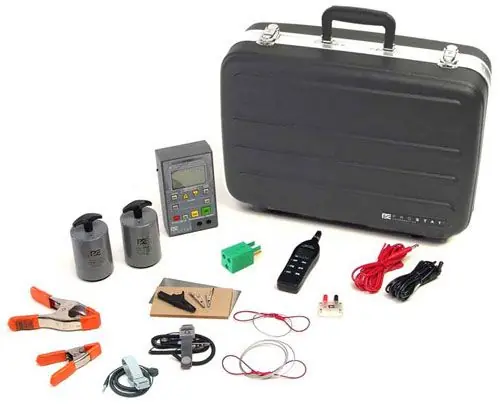

The PMK-152 Floor Resistance Test Kit contains the instruments you need to take resistance measurements. The PMK-152 includes Prostat’s PRS-812 Resistance Meter with 5 pound conductive rubber electrodes. You can take measurements at 10 and 100 volts with accuracy within ±5%. To measure temperature and humidity, the Prostat PHT-771 Digital Psychrometer is also included. The PMK-152 comes with Prostat’s unique 10″ and 36″ electrode spacers, a ground adapter plug, operator’s manual, clamps and a variety of useful accessories. It’s all self-contained in a sturdy carrying case. The PMK-152 is highly flexible for your general auditing needs. You may customize the PMK-152 by adding various options.
Measurement Range
The PRS-812’s accurate wide range of 0.1 to 9.9×1012 ohms, with capabilities to 1.0×1014 ohms, offers exceptional flexibility in measurement applications. In effect, it is 3 instruments in one because it functions as:
A low resistance range instrument for measurements from 0.1 to 1.0×104 ohms. Most competitive instruments do not measure accurately at or below 1.0×103 ohms. Thus, the typical ESD practitioner must carry a DMM for low resistance checks of ground connections. To ensure-field accuracy, the PRS-801CC Calibration Shunt is used to confirm and adjust the accuracy of its 0.1 to 10 ohm resistance range.
A wide range audit instrument that meets and exceeds requirements for ANSI/ESD S20.20 and TR53 periodic verification (audit) procedures from 1.0×103 to 1.0×1011 ohms. Measurement guidelines require accurate measurements from one decade below to one decade above the resistance requirements of a facility’s ESD program. The PRS-812 easily exceeds this requirement by as much as 2 decades, depending on program requirements.
Precision high resistance instrument for Packaging measurements to S541 Standards, for material and product testing, and acceptance verification. Few competitive instruments can measure accurately up to or beyond 1.0×1011 ohms, while the PRS-812 comfortably measures up to 1.0×1012 ohms.
Measurement Flexibility
Connect to virtually any 2-wire fixture or electrode configuration. The PRS-812’s simple 0.75″ inch terminal spacing provides connectivity to a variety of electrodes and fixtures. Terminal design allows use of mechanically shielded or non-shielded banana plug leads. BNC adapters with 0.75″ inch spacing mount directly to the PRS-812 terminals for measurements with wide range probes and fixtures
Measurement Speed: Electrification Period
Along with the PRS-801, the PRS-812 is one of the fastest measurement instruments in today’s precision measurement market. Laboratory tests confirm the PRS-812 can measure from 0 to 1.0×1012 ohms in 2.5 seconds. Thus, its specified electrification period (EP) is 8 seconds in accordance with ANSI/ESD STM 11.11 Surface Resistance of Planar Materials. Furthermore, its EP is automatically adjusted to insure a stable measurement is displayed.
Multiple Modes of Operation
The PRS-812 has Automatic, Manual and Auto-Manual operational modes, plus exponential display or standard numeric display in ohms, K-ohms, M-ohms, G-ohms and T-ohms. It’s easy to use and read. Measurements are summarized in decades using multiple LED’s from <10>3 to>1012.
Constant Test Voltages
PRS-812 has three Test Voltages ranges that provide stable test references for repeatable measurements. In AUTO mode, the instrument automatically selects the proper test voltage for the resistance being measured.
<10>3 ohms. <10V>
10 Volts – Constant Voltage under Load. Constant at 1.0×104 to 9.99×105 ohms. Target calibration is to within ± 0.01 volt, and always within ±1%.
100 Volts – Constant Voltage under Load. Constant at 1.0×106 to 1.0×1012 ohms. Target calibration is to within ± 0.01 volt, and always within ±0.1%
Measurement Convenience & Calculations
Not only does the PRS-812 make accurate measurements quickly, it stores up to 80 measurement data points in its memory. Press the RECORD/RECALL button to retrieve information and calculate attributes of the stored data. Minimum Recorded Measurements. Maximum Recorded Measurements. Average of all Recorded Measurements. The PRS-812 is a convenient, accurate instrument that meets virtually every measurement requirement in the ESD standards world.
