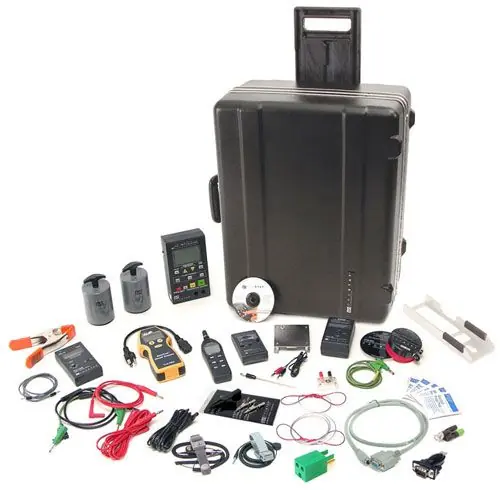

Prostat PSK-310 System Analysis Kit, includes NIST Certificate

The Choice of Advanced Professionals Includes Computer Download Capabilties Designed for ANSI/ESD S20.20 Program Applications.

Full ESD Auditing Capabilities

Evaluate packaging materials

Measure work surfaces, equipment, furniture and flooring resistance

Check ground and electrical circuit reliability

Measure decay time

Measure wrist strap testers

Test footwear

Measure electrostatic fields

Analyze ionizer performance

Balance ionizers

Measure body voltages

Measure charge generation

Evaluate garments

Measure temperature and relative humidity

The PSK-310 Kit is the choice of advanced professionals and the ultimate in advanced auditing and material testing. The PSK-310 includes all of the equipment in the PAK-210 Kit and adds the Prostat PRF-911 Concentric Ring Fixture and the PTB-920 Dual Test Bed for surface and volume resistivity measurements of packaging and other flat materials

The unique PRF-911 Concentric Ring Fixture is used with the PRS-801 resistance meter for reliable measurement of packaging material resistance and resistivity. It is used with the PTB-920 Dual Sided Test Bed to make resistance measurements recommended by EIA-541 (ASTM D 257) and ANSI/ESD S11.11-1993 guidelines for surface resistance and volume resistivity measurements. Because of its spring loaded center electrode, the PRF-911 Concentric Ring Fixture maintains even contact with materials under test and minimizes the need for frequent recalibration.

The PSK-310 also incorporates the new PRS-801 Resistance System and software, the ESD System Analysis Kit is the most advanced static control measurement and auditing system available today. Also included is the PHT-771 for temperature and humidity readings, modified wrist straps for instrument and personnel grounding, a common point ground adapter plug, clamps, clips and an operator’s manual. It is all contained in a molded carrying case with retractable handle and wheels.

Not only is the PSK-310 the preferred choice of ESD industry professionals, internationally, it is easily customized to meet the most demanding auditing or process evaluation requirements.

Battery Operated. Wide Range. Digital.

The digital, battery operated PRS-801 Resistance Instrument accurately measures resistance point-to-point(Rtt), surface to ground (Rtg) and surface resistivity over the range of 0.1 ohms to 2.0×10¹⁴ ohms. Its constant test voltage system is extremely stable at 10 volts and 100 volts.

Complies to ANSI/ESD Standards

The PRS-801 will measure resistance in accordance with ESD Association documents:

ESD TR53

ANSI/ESD S4.1

ANSI/ESD S7.1

ANSI/ESD STM97.1

High Quality Test Leads

Prostat’s 10 foot test leads supplied with each PRS-801 consist of hundreds of fine strands of copper that offer flexibility and accuracy. The outer insulation of each test lead is high grade silicon with an extremely high resistance to minimize measurement errors. These leads are designed for convenient audit measurements in the manufacturing environment up to 1.0×10¹² ohms.

The 30 inch high performance test lead harness is designed for PRS-801 precision high resistance measurements in the 10¹¹ to 10¹⁴ range. It includes a shielded (-) negative test lead for accuracy and minimum electrical interference from personnel and equipment. The shield is connected directly to the PRS-801 instrument reference and fixture ground.

Download Data with Included Utility Software

The PRS-801 has the capability of recording up to 80 measurements into memory. With the use of the included Utility Software and USB adapter, it can download the stored data to your Excel® Spreadsheet program. This minimizes transposition mistakes and speeds up precision measurements. The PRS-801 connects to your computer’s USB port and quickly transfers the data into Excel.

Product Overview

More Information

SKU	I339904
Part No.	PSK-310
Brand	Prostat
Model / Series	PRS-801
Includes	NIST Certificate
