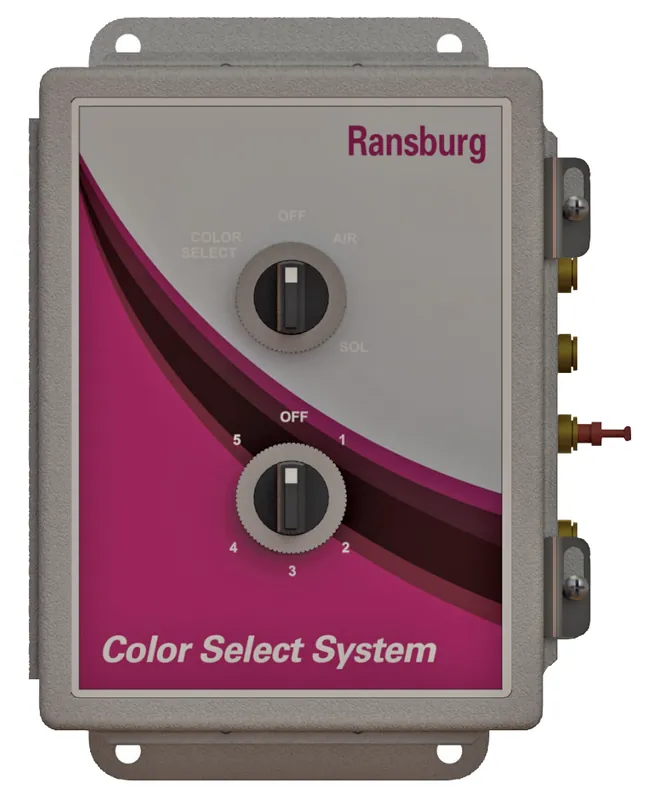

Ransburg LPNE5002-00 Color Select Box Main

Color Select Box Main

Maanufacturer: Carlisle Ransburg

Part #: LPNE5002-00

Description: Main color select box for . For use with 1-5 color valves. If 6-15 color valves are used, a is required.

The Color Select System™ from Ransburg provides an easy and accurate means of changing coating material in any application. Flexible enough to handle as many as fifteen different coating materials, this system is suited for the most demanding applications. The pneumatically-operated fluid valve assembly is controlled with one or two color select boxes which feature easy to use color select switches. Boasting a Class 1, Div.1 approval rating, the Color Select System can be safely mounted anywhere in the facility, even in a hazardous environment.

Literature:

Parts and Accessories:

Ref. No.	Part No.	Description
1	LPNE0005-01	Color Select Enclosure
2		Plug, #10-32
3		Connector Fitting 5/32 Tube x 10-32
4		Logic Base
5		Air Piloted Valve, “NOT” Logic (No)
6		Tube Reducer, 5/32″ x 1/4″
7		Manual Control Valve (3 Way, 6 Position)
8		Bulkhead Fitting, 1/4″ Tube
9	LS0079	DIN Rail, 6″ Length
10	LSMM0051-00	Foam Mounting Tape, 1″ Width
11		“Y” Tube Fitting, 1/4″ Male x 5/32″ Females
12		Tube Plug, 1/4″
13		Sheet Metal Plug
