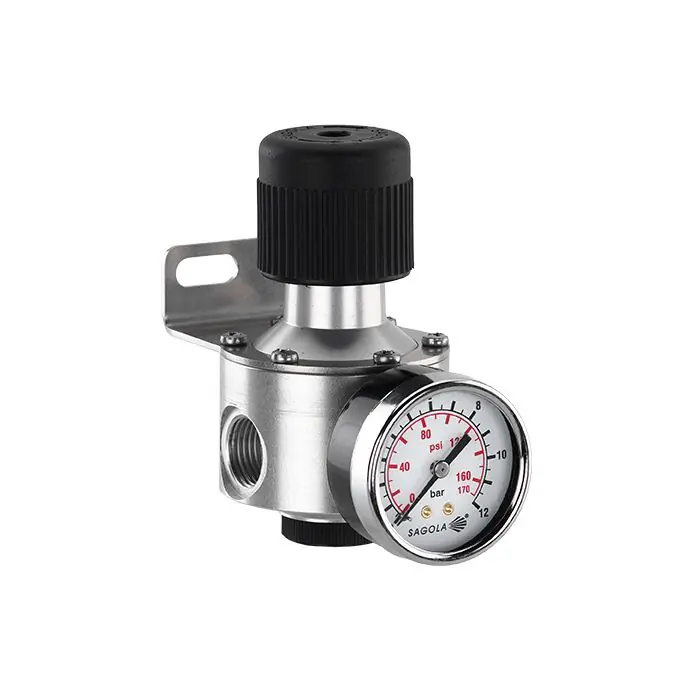

Sagola 430 Plus Mini Air Regulator

Sagola 430 Plus Mini Air Regulator

Manufacturer: Sagola

Part #’s: 1074050X

10740501 = Sagola 430 Plus Mini Air Regulator – ½” Inlet

10740502 = Sagola 430 Plus Mini Air Regulator – ⅜” Inlet

10740503 = Sagola 430 Plus Mini Air Regulator – ¼” Inlet

Description: Mini air regulator. High pressure regulator. Compact, sturdy, reliable and durable design. Made in aluminum. Diaphragm regulator, 0 to 10 bar. Quality pressure gauge up to 10-bar Standard adaptors and fittings included. Quick release and short shift wheel.

Features:

Highly reliable air regulation system.

Manufactured from a solid aluminum block.

Diaphragm regulator from 0 to 10bar (145psi).

Quick release and short shift wheel.

High quality analogue pressure gauge.

Easy wall mounting.

Packing List: Sagola 430 Plus Mini Air Regulator.

Specifications:

Air Flow (at 7bar)	1200 – 1700 l/min (60cfm)
Max Working Pressure	10bar (145psi)
Max Working Temp	90°C (194°F)
Dimensions	107 x 65 x 115 mm (4.21 x 2.56 x 4.53”) without coupling
Weight	544g (19.19lbs)

Parts:

Ref. No.	Part No.	Description
14		Analogue Pressure Gauge 0 – 12 bar (0 – 160 psi)
15/1		Connector – Brass: M-BSPT 1/2″ to F-BSPP 3/8″; Pack of 2
15/2		Connector – Brass: M-BSPT 1/2″ to F-BSPP 1/4″; Pack of 2

Accessories:

Porous Bronze Filter (40 Microns)

Lubricant Grease (SAE 10), 100ml (3.38fl oz)

Quick Connectors

= Quick Coupling – Brass: M-BSPT 1/4″, US-Mil

= Connector – Steel: F-BSPT 1/4″, US-Mil

Threaded Brass Connectors

= Connector – Brass: M-BSPT 1/4″ to M-BSPT 1/4″; Pack of 2

= Connector – Brass: M-BSPT 1/2″ to M-BSPT 1/2″; Pack of 2

= Connector – Brass: M-BSPT 3/8″ to M-BSPT 3/8″; Pack of 2

= Connector – Brass: M-BSPT 1/2″ to M-BSPT 3/8″; Pack of 2

= Connector – Brass: M-BSPT 3/8″ to M-BSPT 1/4″; Pack of 2

= Connector – Brass: F-BSPP 1/2″ to M-BSPT 3/8″; Pack of 2

= Connector – Brass: F-BSPP 3/8″ to M-BSPT 1/4″; Pack of 2

= Connector – Brass: M-BSPT 3/8″ to F-BSPP 1/4″; Pack of 2

= Connector – Brass: M-BSPT 1/2″ to Barbed 8mm; Pack of 2

= Connector – Brass: M-BSPT 3/8″ to Barbed 8mm; Pack of 2

= Connector – Brass: M-BSPT 1/4″ to Barbed 8mm; Pack of 2

= Connector – Brass: M-BSPT 1/2″ to F-BSPP 3/8″; Pack of 2

= Connector – Brass: M-BSPT 1/2″ to F-BSPP 1/4″; Pack of 2
