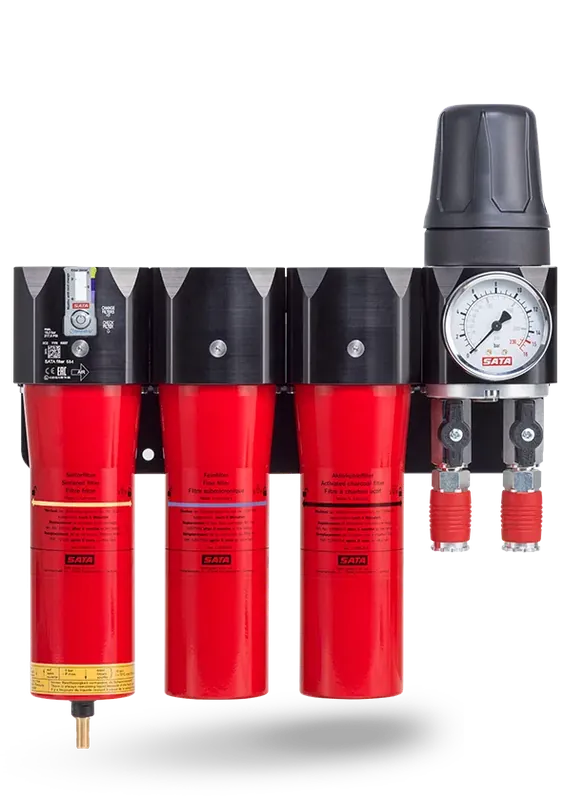

SATA Filter 500 Series

SATA Filter 500 Series

Manufacturer: SATA

Part Number: See Table Below

Description: The SATA filter series provide particle-free, clean compressed air for professional coating. The SATA filter series for spray guns are available as one-stage sintered filters with a water and oil separator, as a two-stage combination filter with a sintered and fine filter, or as a three-stage filter unit with an additional sintered activated charcoal filter. With the SATA compressed air filters, coating flaws such as dust particle inclusions, condensate, silicone craters, and thus possibly expensive rework, can be avoided. The treated compressed air can be used for spraying and, when using a three-stage filter, it is also suitable for air-supplied respirator systems.

SATA’s latest filter series, the SATA filter 500 enables a higher absorption of contaminates and enhanced durability due to the optimized position of the charcoal filter. The SATA filter 500 is available with different filter stages. Changing the filter is simple and straightforward and filter maintenance is only necessary every 6 months.

Options Available:

Filter 524 Part no. 1101659	Single-stage sinter filter, with pressure regulator and outlet module (2x 1/4″ male thread)
Filter 524 L Part no. 1101641	Single-stage sinter filter, with pressure regulator. For pipeline installation (G 1/2″ female thread)
Filter 544 Part no. 1100990	Double-stage sinter filter, fine filter, with pressure regulator and outlet module (2x 1/4″ male thread)
Filter 544 L Part no. 1124932	Double-stage inline filter for pipeline installations. Without pressure reducer.
Filter 584 Part no. 1099953	Triple-stage sinter filter, fine filter, activated carbon filter, with pressure regulator and outlet module (2x 1/4″ male thread)
Filter 584 L Part no. 1101716	Triple-stage inline filter for pipeline installations. Without pressure reducer.
Filter 584 W/ Carrying Support Part no. 1101625	Triple-stage sinter filter, fine filter, activated carbon filter, with pressure regulator and outlet module (2x 1/4″ male thread). With carrying stand

Product Benefits:

Air flow: approx. 135 CFM at 87 psi

Meeting highest requirements for high-grade compressed air (100 % technically clean air)

Higher absorption of contaminates (compared to SATA filter 484) due to the new sintered activated charcoal filter

Synchronized maintenance: Filter maintenance only necessary every six months for all stages

Maintenance-free bayonet lock with haptic and acoustic feedback

Fine filter and activated charcoal filter cartridges fit perfectly by simply being inserted—no screw fittings or additional seals

Simple plug-in system for upgrading SATA filter 544 to 584

Maintenance-free sealing elements

Line connection possible either from the left or the right side

Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won’t be covered under SATA’s warranty.

Technical Data

Air Inlet:	G ½” Female Thread
Air Outlet:	¼” Male Thread

Max. Inlet Operating Pressure:	217 PSI
Max. Outlet Operating Pressure:	217 PSI
Airflow At 87 PSI:	Approx. 135 CFM
Max. Ambient Temperature:	248° F
Max. Ambient Temp. With Activated Charcoal:	140° F

Replacement Filters

Sintered Filter

Fine Filter Cartridge

Activated Charcoal Cartridge

Fine Filter and Activated Charcoal Cartridge Pair

SATA Filter 524 Spare Parts

Pressure Regulator & Gauge

Automatic Condensate Drain Valve

Sintered Filter

Condensate Retainer With O-Ring

Pressure Reducer With Adjustment and Counter Screws

Diaphragm Including Pressure Spring and Spindle

Pressure Steering Unit

0–145 PSI Pressure Gauge

Cover Unit With Ball Valves (2 Pcs)

Filter Sleeve With Automatic Discharge Valve

Cyclone Separator

SATA Filter 544/584 Spare Parts

Pressure Regulator & Gauge

Automatic Condensate Drain Valve

Sintered Filter

Condensate Retainer With O-Ring

Pressure Reducer With Adjustment and Counter Screws

Fine Filter Cartridge

Activated Charcoal Cartridge


Service Kit For 500 Series With Fine Filter and Activated Charcoal Cartridge

Diaphragm Including Pressure Spring and Spindle

Pressure Steering Unit

0–145 PSI Pressure Gauge

Cover Unit With Ball Valves (2 Pcs)

Filter Housing

Filter Sleeve With Automatic Discharge Valve

Cyclone Separator

Repair Kits & Accessories

SATA filter 564 add-on kit (converts filter 544 double-stage to filter 584 triple-stage)

Service Unit

Sealing Kit
