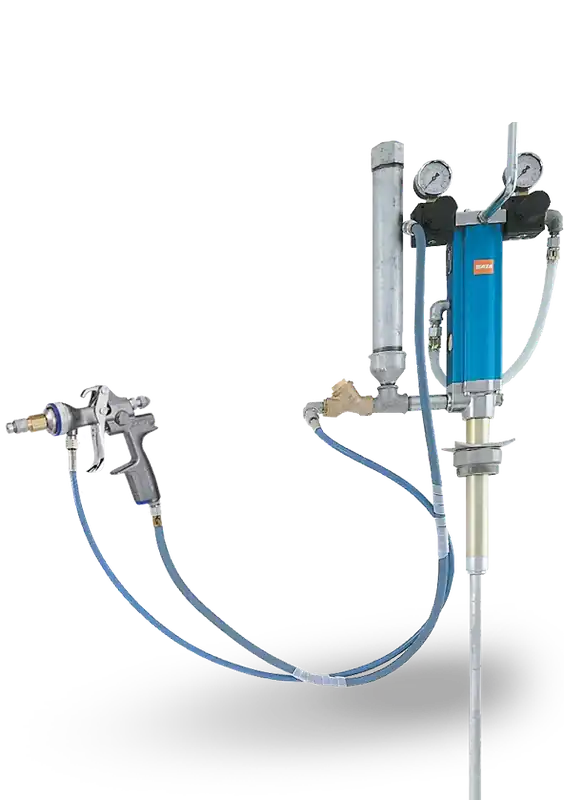

SATA HKU Barrel Pump Unit

HKU Barrel Pump Unit For Cavity Preservation

Manufacturer: SATA

Part #:

14555 – 60 Liter Pump

34389 – 200 Liter Pump

Description: Specialized equipment for hollow cavity and underbody corrosion protection. The SATA HKU barrel pump unit is the first choice for processing large quantities of material. SATA HKU barrel pump unit consisting of pump 3:1, with pair of hoses 10 m, , 3 wand set with type 1 connection: (1) Nylon wand # (1) Door wand # (1) Hook wand #

Product Benefits

Individual – Material and atomising pressure can be adjusted at the double pressure reducer

Complete system – piston pump 1:3, hose package, spray gun, nylon, door and hook wand

Flexible – SATA wand systems can be attached via the product coupling

Specifications:

Pump Volume w/ Nozzles:	app. 0.036 CFM
Air Consumption Spray Gun:	7.1 CFM
Air Consumption Pump:	8.2 CFM
Air Connection Thread:	G 1/4 outs. thread
Total Weight:	24.2 lb
Max. Air Pressure:	150 psi
Min. Air Pressure:	37.5 psi
Max. Material Pressure:	450 psi
Bursting Pressure:	2250 psi
Free Material Flow:	approx. 22 l/m
Air Connection:	G 1/4 int.
Material Outlet:	G 3/4 int.
Material Outlet:	Suction Pipe G 3/4
Noise Emission:	79 dB (A)2

Barrel connection with 2″ thread is supplied with pump.

Literature:

Parts and Accessories:

Part #	Description:
	Packing Kit
	Air Motor Repair Kit
	Pump Tube Repair Kit
	Guiding Hose
23291	Reduction Nipple
	Pressure Compensation Containers, cpl.
	SATA Material-Feed Pump Only, 60 ltr.
38679	Suction Pipe for 60 ltr. Barrel
	Sieve Insert
39727	Barrel-Screwing
	SATA Material-Feed Pump Only, 200 ltr.
	Valve Mechanism cpl.
	Bottom Valve cpl.
	Piston Rod
70086	Suction Tube for 200 ltr. Barrel
80622	Pump Fittings
