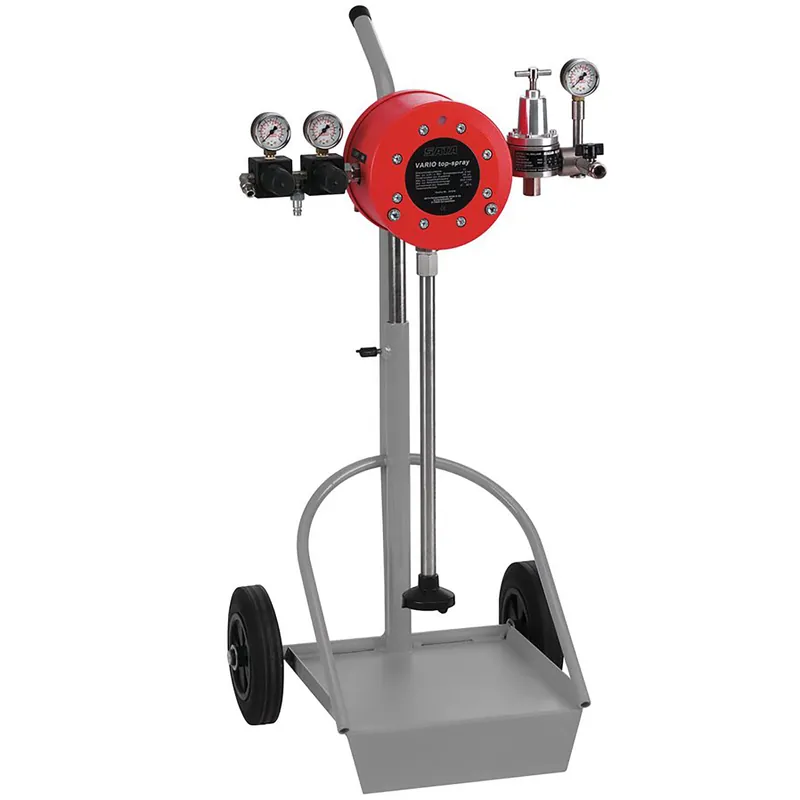

SATA Vario Top Spray Pump

Vario Top Spray Diaphragm Pump

Manufacturer: SATA

Part #: Refer to table

Description: 1:1 Ratio double diaphragm pump. Economical. Powerful. Versatile in use. The powerful double diaphragm pump SATA vario top spray is the ideal system for continuous processing of larger quantities of material. The SATA vario top spray is a real problem solver in vehicle and industrial painting, in machine construction as well as in wood and furniture painting. All solvent-based paint systems of the most varied viscosities and structures, but also water-based paints, can be processed without problems.

2 Versions:

Standard version in aluminium for solvent-based materials.

Stainless steel version for solvent-based and waterborne materials.

*All units come with material fine pressure regulator, suction tube and 1 spray gun connection, without spray gun and hoses. Select mounting option*

Features:

Economic – fast amortisation through continuous operation and high area output

Versatile – finest atomization of pre- and topcoats with proven and high-quality SATA paint spray guns

Variable – modular device design for optimum adaptation to any task

High performance and low wear – through proven double diaphragm technology

Robust stainless steel design for water-based paint systems

Specifications:

Pump Ratio:	1:1
Material Pressure:	116 psi
Material Flow Volume @ 220 Double Strokes:	1.1 CFM
Air Inlet Pressure Min:	14 psi
Air Inlet Pressure Max:	116 psi
Weight w/out add-on components:	Aluminum: 13lbs Stainless Steel: 26lbs

Reference Table:

Part Number	Model	Mounting
61515	Aluminum	Cart
61507	Aluminum	Wall
81661	Aluminum	Stand
72694	Stainless Steel	Cart
72678	Stainless Steel	Wall
81406	Stainless Steel	Stand

Parts and Accessories:

Part #	Description:
	Floor Stand
	Wall Mount
	Gasket For Suction Tube
	Trolley
	Pressure Gauge 0-150psi
19851	Sieve Hose
	Air Connection
	Single Pressure Regulator
74187	Suction Globe
	Wing Shaped Handle
	Double Pressure Reducer
149716	Gravity Flow Cup 6L
	Container Stud
	Gasket For Gravity Container
149948	Flat Sieve 20 Mesh
	Pressure Gauge 0-6bar
	Circlip

Parts and Accessories (Cont.):

Ref. No.	Description	Standard #	Stainless #
1	Double Diaphragm Pump
2	Material Fine Pressure Regulator		25338
3	Material Connection
4	Suction Hose
5	Suction Pipe		74193
6	Suction Tube
7	Sieve Unit	742XX	742XX
8	Threaded Nipple	41384
9	Elbow
10	Conversion Kit for Gravity Flow		74211
11	Add-On Kit Gravity Container		37226

Repair Kits:

Kit #	Part #	Description
1		Set of sealings, complete
2		Diaphragm repair kit
3		Control repair kit
4		Valve repair kit
5		Carrier rod repair kit
6		Carrier repair kit

Single Components of Repair Kits:

Kit #	Part #	Description
4		Sealing
1, 3, 5		O-Ring 9×2 B
1, 3, 5		O-Ring 42×2
1	47092	O-Ring 48×2
1, 3		Shape Seal
1, 3, 5		Sealing Ring 8.2×11.4×1
1, 6		Flat Seal D 72xT 1
1		O-Ring 10×2
6		Driving Pin
4		Ball 18mm
2		Diaphragm Complete D 123
4		Ball-Bearing
4		Valve Seat D12 Short
All		Profile Packing 17.2×28.2×5.4
1, 4		O-Ring 22×3
1, 6		O-Ring 14×2
3		Flat Valve 24×19
5		Carrier Rod D 13, 9L
3		Valve Seal D48

Spare Parts – Material Fine Pressure Regulator:

Part #	Description
7989	Ball Tap
	Pressure Gauge 0-150 psi
21998	Pressure Plate
	Compression Screw
	O-Ring
	Sleeve Nut For Ball Valve
	Insert (for Pressure Reg)
78824	Pressure Spring
78832	Tappet
78915	Packing
	Diaphragm
	Plunger Kit, cpl.
	Pressure Gauge 0-87 psi
	Gasket
149948	Flat Sieve 20 Mesh
