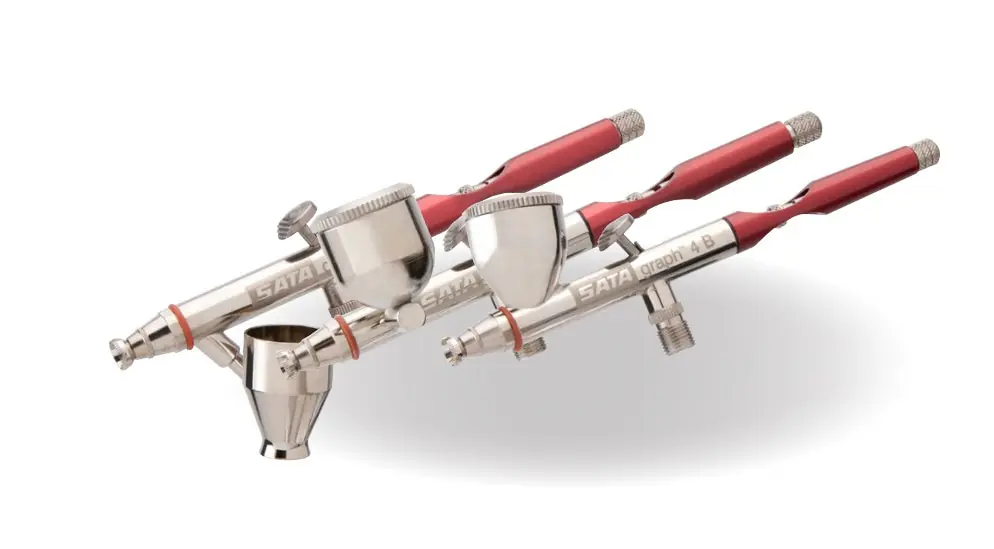

SATAgraph 4 Airbrush

SATAgraph 4 Airbrush

Manufacturer: SATA
Part Number: S004X

Description: “The SATAgraph 4 has the best of everything—durability, comfort, dependability and affordability. “In my opinion, the SATAgraph 4 is the best all-around automotive airbrush ever made. German engineered, American made.” ~ Mickey Harris

The SATA super grip trigger has a unique forward cut trigger with cross teeth, giving a comfortable nonslip grip. The crosscut, reversible air cap tip allows air to flow away from the tip when close to the surface, spraying with less turbulence than a standard tip. The nozzle shield is completely reversible, so you can paint with the needle exposed and pick the tip dry just like the pros. This also prevents losing the shield, like with other brands. The Teflon coated trigger and rocker arm create a super smooth trigger pull for better control and durability. The trigger set knob is at the rear of the gun to allow you to set the trigger pull at a certain position to control paint flow.

Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won’t be covered under SATA’s warranty.

Product Benefits:

Single piece trigger

Single Piece, Teflon Coated Trigger & Rocker Arm

Solvent proof O-Rings On Front & Inside Of Air­brush

Made In America, German Engineered

Competitively priced

Simultaneous Air & Material Control Via The Trigger For A Familiar Action

Removable Needle Cap To Allow Drawing Finest Lines

Highest Precision In Various Fields Of Application

Technical Data:

Inlet Pressure: Variable

Air Consumption: 0.4 CFM

Spray Distance: Variable

SATAgraph 4 B

S004B SATAgraph 4 0.4 Nozzle With 2.5ml Gravity Cup, No Air Hose

S004S SATAgraph 4 0.4 Nozzle With 2.5ml Side Feed Cup, No Air Hose

S004H SATAgraph 4 0.4 Nozzle With 2.5ml Siphon Feed, No Air Hose

(SATAgraph 4 is supplied without hoses and quick coupling nipple. These parts have to be ordered separately. See spare parts list.)

SATAgraph 4 Nozzle Sets

0.4

0.25 Detail Needle/Nozzle For Even Finer Detail

Detail Nozzle Tip

0.25 Detail Airbrush Nozzle

High Roller Trigger

SATAgraph 4 B/S/H Kit

S004HBS

SATAgraph 4, 3 gun kit includes all three SATAgraph 4 airbrushes, 0.4 nozzle, S004B, S004S, S004H. Also included is (1) S032 3/4oz glass jar with siphon lid, (1) S039 1oz glass cup with side feed lid, (1) S045 6ft braided hose with quick disconnect, (3) Quick Connect plug/fittings, female, (1) foam padded case with handle.

SATAgraph 4 Parts List

0.4 Airbrush Needle

Nozzle Tip (Fluid Tip)

Nozzle Cap (Inner Air Cap)

Nozzle Cap Shield (Reversible Outer Air Cap Nozzle Shield)

Needle/Nozzle Refurbish Kit (Includes 001, 002, 003, 004)

Nozzle Base

Nozzle Base O-Ring


Nozzle Base Wrench

Air Valve Chamber

Trigger Valve Stem

Trigger Valve Spring

Air Valve Seal/O-Ring

Air Valve Screw

Complete Air Valve Assembly (Includes 009, 010, 011, 012, 013)

Inner Seal Screw & O-Ring (Gravity & Side Cup Models)

Airbrush Trigger

Needle Alignment Tube & Lever Assembly

Needle Tube Spring

Needle Tension Adjustment Knob

Needle Locking Nut

Needle Alignment & Adjustment Assembly (017, 018, 019, 020)

Siphon Feed Airbrush Body

Gravity Feed Airbrush Body

Side Feed Airbrush Body

Airbrush Handle O-Ring

Trigger Stop Set Handle, Red

Trigger Stop Set Screw

Trigger Stop Set Handle & Screw (Includes 026, 027)

Protective Nozzle Cover

Metal Siphon Lid, Fits 3/4oz Glass Cup

3/4oz Glass Cup With Blind Storage Lid (For S)

3/4oz Glass Cup With Metal Siphon Lid (For S)

1/4oz Color Cup (Metal Siphon Cup)

Side Feed Metal Color Cup

Side Feed Inlet Plug, Red

Metal Lid For Side & Gravity Feed Color Cups

Metal Side Feed Lid For 1oz Glass Cup

1oz Glass Cup With Blind Metal Storage Lid

1oz Glass Cup With Metal Side Feed Lid

6ft Braided Air Hose, 1/8” x 1/4”

10ft Braided Air Hose, 1/8” x 1/4”

6ft Braided Air Hose With Moisture Trap

10ft Braided Air Hose With Moisture Trap

In-Line Moisture Trap

8ft Quick Disconnect Braided Air Hose

Quick Disconnect Plug/Fitting, Female

Plastic Siphon Lid, Fits 3/4oz Glass Cup

3/4oz Glass Cup With Siphon Lid For (H) Plastic Lid

PVC Lid For 1/4oz Metal Siphon Color Cup

Quick Disconnect Air Coupling, Male

PVC Color Cup Lid For Gravity & Side Cups

High Roller Trigger

Detail Nozzle Set (Includes 003, 004, 056, 057)

0.25 Detail Airbrush Needle

Detail Fluid Tip

0.25 Detail Needle/Fluid Tip For Even Finer Detail

Adapters
