SATAjet 100 B F / B P Spray Gun

Manufacturer: SATA
Part Number: 1012XXX

Description: The SATAjet 100 B F can be used for a wide range of applications due to its extreme flexibility in setting the atomization pressure. Due to the wide spray fan and fine atomization, fillers and primers can be applied in a continuous flow despite the higher material viscosity. This saves valuable working time due to less grinding effort.

The B P Version is specially designed for the application of polyester spray putty/filler and is indispensable for creating high film builds along with a sharp-edged fan. The SATAjet 100 B P is an excellent choice for spraying large flake material.

Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won’t be covered under SATA’s warranty.

Product Benefits:

• Fine atomization even at low inlet pressure

• Sturdy air cap thread

• Self-adjusting seals

• Low overspray

• Sample RPS cups 0.3–0.9 liter, 1 each

• Pressure adjustable from 7–29 PSI

RP Technical Data

Inlet Pressure: 7–29 PSI

Air Consumption: 10.2 CFM at 29 PSI

Spray Distance: 6–8 in.

HVLP Technical Data

Inlet Pressure: 29 PSI

Air Consumption: 12.4 CFM at 36 PSI

Spray Distance: 3.9–5.9 in.

100 B P (Polyester) Version Technical Data

Inlet Pressure: 7–29 PSI

Air Consumption: 8.7 CFM at 29 PSI

Spray Distance: 5–7 in.

RP Nozzle Sets

1.1 UV

SEALER

1.4

1.6

1.8

2.0

HVLP Nozzle Sets

1.4

1.7

1.9

2.1

100 B P (Polyester) Version Nozzle Set

2.5

Spare Parts & Accessories

• Air Piston Packing

• Universal Wrench

• Fan Control Screw

• Non-Drip Device (4 Pk)

• Circlip

• Large Brush

• Air Micrometer Pin

• Lower Trigger Pin

• Sieve (20 Pk)

• -5 Sieve (5 Pk)

• Nozzle Cleaning Brush (10 Pk)

• CC Disc (4 Pk)

• Aluminum Cup Insert

• Tool Kit

• 4mm Allen Wrench

• Upper Trigger Pin

• Needle Packing

• 14993 Needle Spring Packing*

• Needle Packing Kit

• Tension Spring Washer

• Paint Needle Spring

• Needle Packing

• 0.6 Liter Plastic QCC Cup

• Wire Air Ring Puller

• 0.6 Liter Plastic Lid

• 0.6 Liter Cup Lid Drip Ring (5 Pk)

• Fan Control O-Ring

• Plastic Lid (3 Pk)

• Control Needle O-Ring

• Air Piston Rod

• Air Piston Service Set

• Inner Cup Seal

• Air Cap Ring Seal

• Complete Trigger Service Kit

• Repair Kit

• Battery Kit with Cover & Gasket

• Trigger Sleeve Kit

• Fan Control O-Ring (3 Pk)

• Air Piston Bushing

• Spring Kit (#17897 & 215806, 3 each)

• Seal Kit

• Air Piston Spring

• Air Micrometer Pin (3 Pk)

• ¼” Air Inlet Fitting

• Air Piston Packing (3 Pk)

• Fluid Control & Lock Nut Kit

• HVLP & RP Air Micrometer

• Fan Control Knob With Screw

• Fluid Tip Seal (5 Pk)

• Air Distribution Ring (3 Pk)

• Air Cap Ring With Seal (RP)

• Air Cap Ring With Seal (HVLP)

Only With SATAjet 100 B P (2.5) Version

• 9mm x 1.5mm O-Ring

• Closing Cap With O-Ring Seal

Tool Kit—

• Extraction Tool

• Paint Strainer

• Cleaning Brush

• 2mm Allen Wrench

• 4mm Allen Wrench

• Universal Spanner

• Universal Key Kit (3 Pk)

Repair Kit

• Air Piston Service Set

• Slimmed Down Maintenance Set

• Seal Kit

SATAjet 100 B Maintenance Set—

• Air Piston Rod

• Paint Needle Packing

• Air Cap Seal Ring

• Spindle Seal

• Seal Retainer

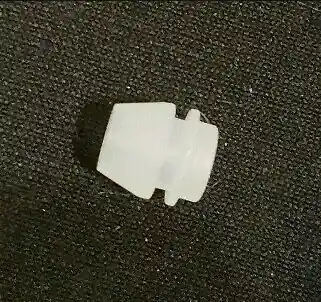

• Teflon Air Piston Seal

• Fluid Tip Sealing Element

• Air Distribution Ring With Extraction Tool

Adapters
