Original price was: $1,883.95.$298.98Current price is: $298.98.
Manufacturer: SATA
Part #: 170XXX

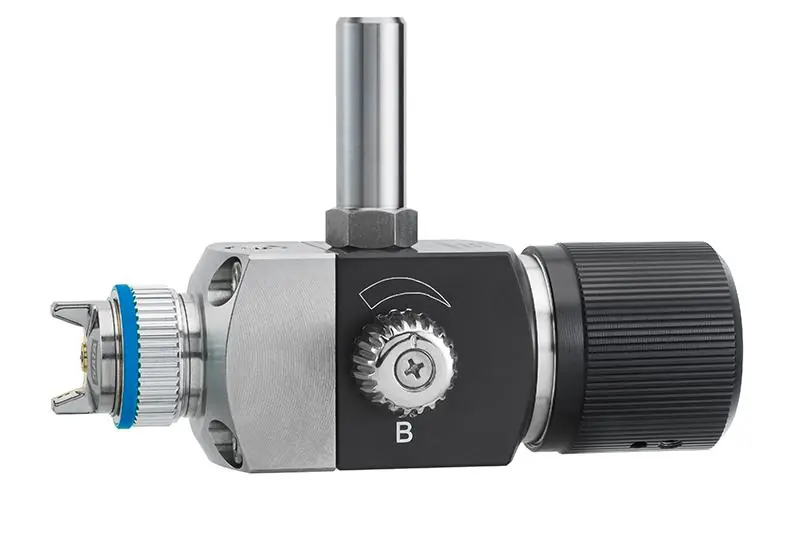

Description: Internally controlled high-performance gun for automatic painting machines and painting robots. Nozzle system for fine coating results on small surfaces and for complex detailed coatings.
Product Benefits
Simple integration into system control by integrated pre- and post-air delay
Circulation mode
Stepless regulation of the fan geometry
Process reliability through self-adjusting sealing elements in the air and material area
Low maintenance requirements, easy replacement of components
Finest atomisation for detail coatings
Ideal for thin layers
Homogeneous spray fan with maximum application efficiency through proven RP or HVLP technology
HVLP: Extra Economical – HVLP paint spray guns achieve particularly high transfer rates with their low-pressure technology.
| Technical Data: | HVLP |
| Inlet Pressure: | 36-45 psi |
| Air Consumption: | 6 CFM |
| Air Pressure Min. | 45 psi |
| Fluid Pressure Max. | 145 psi |
| Fluid Temp Max. | 176 F |
Parts and Accessories:
| Part No. | Description |
| Teflon Seal | |
| Washer, 3.7 DIN 125 Brass | |
| Compression Spring | |
| Compression Spring For Needle | |
| Spindle Complete | |
| Seal Retainer | |
| Control Piston | |
| Washer | |
| Hollow Screw | |
| Sleeve | |
| Spacer | |
| Spring Compression | |
| Seal Retainer, Complete | |
| Control Piston, Complete | |
| 64873 | End Cap, Complete |
| 64881 | Control Cap, Complete |
| O-Ring 5×2 | |
| Hex Socket Screw | |
| Inner Material Seal | |
| Cylindrical Screw | |
| Air Dist. Ring | |
| O-Ring 11×1 | |
| Control Knob w/ Screw | |
| 144618 | Mounting Post 15mm |
| Seal Retainer, Cpl | |
| Nozzle Head Cpl |
Total Finishing Supplies is an authorized SATA Distributor. Beware of sites that claim to offer genuine SATA items. They may not be authorized and you may be buying a fake or an item that won’t be covered under SATA’s warranty.
