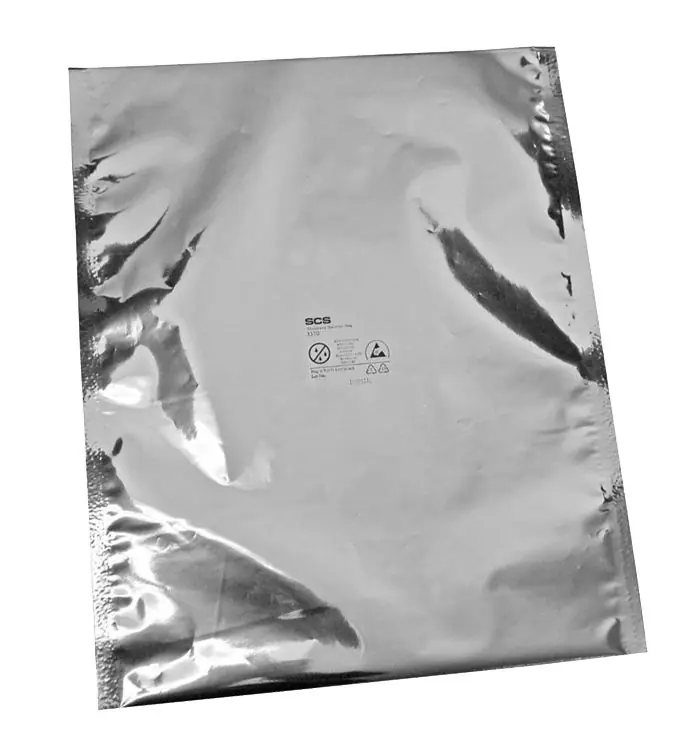

SCS 3371012 Moisture Barrier Bags, 10″ x 12″ (Pack of 100)

Moisture Vapor Transmission Rate (MVTR): 0.028 grams/100 sq. in./24 hrs / MIL-STD-3010C Method 3030

Tensile Strength: 7800 PSI, 54 MPa / ASTM D882

Puncture Resistance: 20 lbs, 89 N / MIL-STD-3010 Method 2065

Seal Strength: 16 lbs, 71 N / ASTM D882

Thickness: 3.6 mils, 0.0036″ +/-15% / MIL-STD-3010 Method 1003

Marking Adhesion: Pass / IPC-TM-650 2.4.1

ESD Shielding: <10>

Surface Resistance – Interior: 1 x 10⁴ to < 1 x 10¹¹ / ANSI/ESD STM11.11

Surface Resistance – Exterior 1 x 10⁴ to < 1 x 10¹¹ ohms / ANSI/ESD STM11.11

Silicone: Not Detected / FTIR

Outgassing: 150 μg/cm² / DHS

NVR: 7.1 μg/cm² / Hexane Extract

IC (Anions): CL 0.025 μg/cm²; NO3 0.16 μg/cm²; S04 not detected / IC of DI Water Extract

Temperature: 400°F, 204°C

Time: 0.6 – 4.5 seconds

Pressure: 30 – 70 PSI, 206 – 482 KPa
