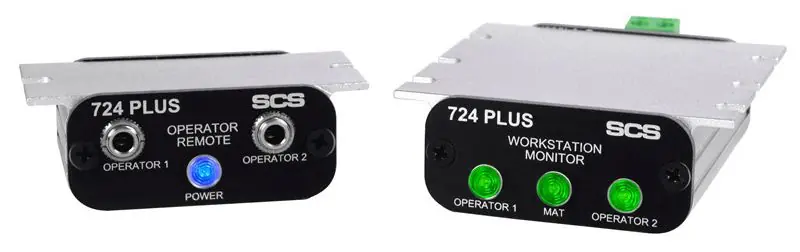

SCS 724 Plus Workstation Monitor

The 724 Plus Workstation Monitor is designed with digital signal processing technology for true continuous monitoring (versus pulsed or intermittent) of wrist strap functionality (path-to-ground and presence of two 1-megohm resistors) and operator safety according to accepted industry standards. It is unaffected by capacitance variations from personnel or the environment. Digital signal processing technology uses dual-wire wrist straps to apply a low test voltage of 0.40 V onto the operator for the handling of sensitive components.

The 724 Plus Workstation Monitor features operator body voltage detection. It will alarm if the operator generates or comes in contact with voltage that would be dangerous to an ESD susceptible item. Each 724 Plus Workstation Monitor is calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology (NIST) and includes a certificate of calibration.

ANSI/ESD S20.20 section 7.3 states “Compliance verification records shall be established and maintained to provide evidence of conformity to the technical requirements.” Per ANSI/ESD S1.1 Annex A.3 Daily (wrist strap system) “testing may be omitted if constant monitoring used.” Per ESD Handbook ESD TR 20.20 section 5.3.2.4.4 “Typical Test programs recommend that wrist straps that are used daily should be tested daily. However, if the products that are being produced are of such value that knowledge of a continuous, reliable ground is needed, and then continuous monitoring should be considered or even required.”

Includes

1 724 Plus Workstation Monitor

1 Dual Operator Remote

1 Operator Remote Cable

1 Mat Monitor Cord (White)

1 Monitor Ground Cord (Green and Yellow)

1 Countersunk Washer

1 Flat Head Screw, 6-32 x 1/4″

4 Pan Head Screw, #6 x 3/8″

1 Power Adapter, 12 VDC, with interchangeable plugs (North America, UK/Asia, Europe)

Technology: Digital Signal Processing

Wrist Strap Type: Dual-Wire

Operator(s): 2

Worksurface(s): 1

Metal Ground(s): 0

Body Voltage Detection: Yes

EOS Detection: No

Contact EMI Voltage Detection: No

Relay Terminal: No

Software Compatibility: No

Operator Test Voltage (open circuit with respect to ground): 0.40V

Product Overview

More Information

SKU	I396901
Part No.	770724
Brand	SCS
ESD-Safe	Yes
Type	Dual Wire
Includes	NIST Certificate
