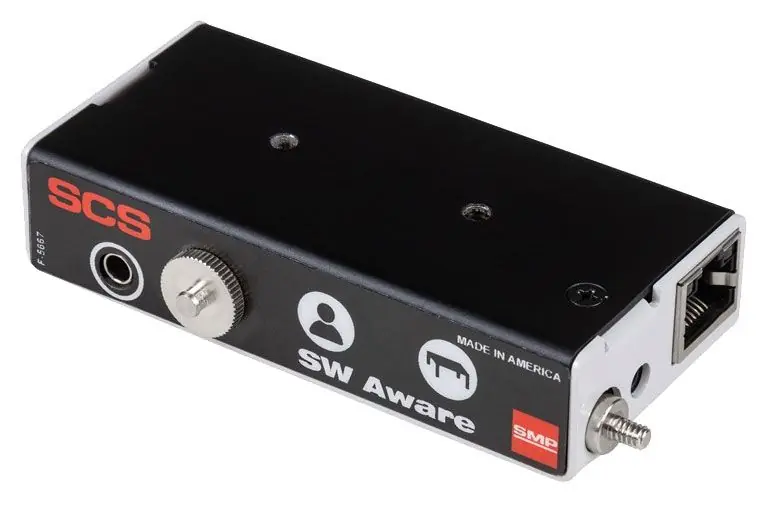

SCS 770151 SW Aware Single Wire Continuous Workstation Monitor with North American Power Adapter

Details & Specifications

Input Voltage and Frequency (External Adapter)

AC/DC Power Adapter

Power Input: 100-240 VAC, 50/60 Hz

Power Output: 9 VDC

Cable Length: 5′ (1.5 m)

Environmental Requirements

Indoor use only at altitudes less than 500 ft. (2 km)

Maximum relative humidity of 80% up to 85°F (30°C) decreasing linearly to 50% @ 85°F (30°C)

Specifications

Operating Temperature: 50 to 95° F (10 to 35° C)

Operator Test Range*: 500 kilohms to 10 megohms impedance

Worksurface Test Limit**: 10 megohms (±20%)

Operator Test Voltage: 1.2 V peak-to-peak @ 1.2 µA, open circuit

Worksurface Test Voltage: 5 to 7.5 V, open circuit

Alarm Response Time: <50>

Country of Origin: United States of America

*This cannot be verified with standard DC test equipment. The continuous monitor is an impedance sensing device, and the limits are determined by the magnitude and angle of the impedance.

**The worksurface mat must have a conductive layer such as Dual Layer Rubber or Dissipative 3-Layer Vinyl with conductive buried layers. SCS workstation monitors are not recommended for use with homogeneous matting.

ANSI/ESD S20.20 requires the use of a surface resistance meter for periodic verification of a worksurface’s resistance-to-ground (Rtg). Constant monitors may not be used as a substitute for this requirement.

Product Overview

More Information

SKU	I263288
Part No.	770151
Brand	SCS
ESD-Safe	Yes
Type	Single Wire
Includes	NIST Certificate
