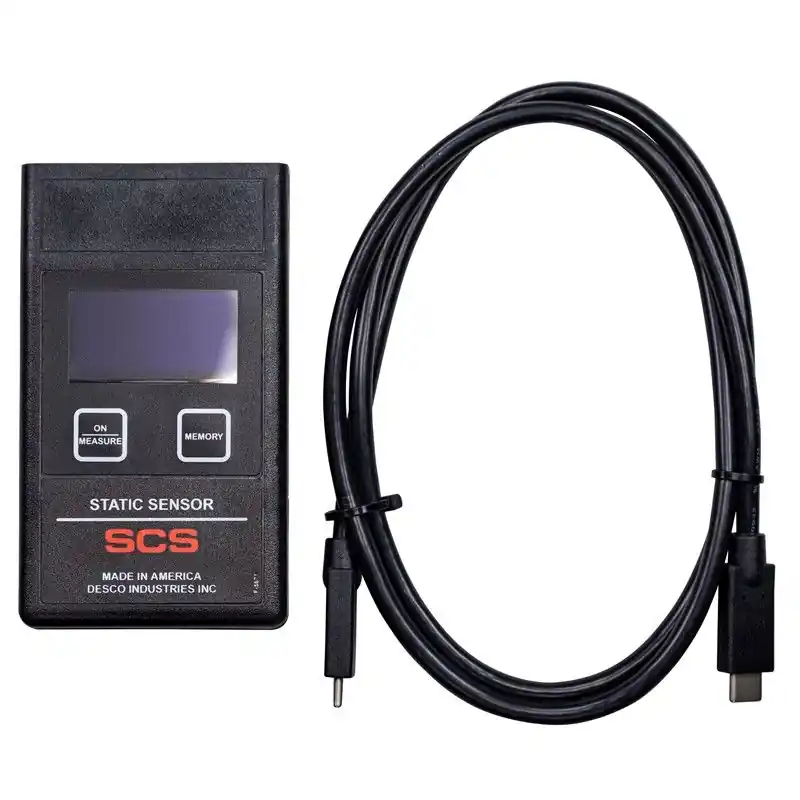

SCS 770713 Static Sensor

Electrostatic Field Meter, Measures static charge and polarity on objects up to ±40.0 kV

OLED Display, Provides clear readings from a super-wide 160° viewing angle

Time-of-Flight (ToF) Distance Sensor, Determines distances from 1 to 200 mm to automatically adjust measured electrostatic values

Auto-Zero Functionality with Dissipative Enclosure, Grounds the meter when held by a grounded operator

Automatic Snapshot Hold, Freezes the measurement on the display when the meter is moved away from the targeted object

Internal Memory, Stores and recalls up to 10 measurements

USB-C Port with Rechargeable Lithium-Ion Battery, Handles both charging and data transfer to a PC

Chopper-Stabilized Sensor, Yields accurate measurements in both normal and ionized environments

Specifications

Display: OLED display, 128 x 64

Ports: USB-C supports USB 2.0 and USB 3.1

Battery: Lithium-Ion 1080 Mah, 3.7 V, 3.99 Wh. UN 38.3 certified

Battery Life: Approximately 60 hours of continuous operation

Size: 2.4″ W x 4.2″ L x 1.3″ D (61 x 107 x 33mm)

Weight: 4 oz. (109g) with battery

Operating Conditions: Operates at 0 to 50° C and 0 to 85% RH (non-condensing). Accuracy unaffected by air ionization.

Measurement Range: -40.0 kV to +40.0 kV

Distance Range: 1 to 200mm

Resolution: 1 V for 0 to 999 V, 10 V for 1.00 kV to 9.99 kV, 100 V for 10.0 kV and above

Accuracy: ±5%

Country of Origin: United States of America
