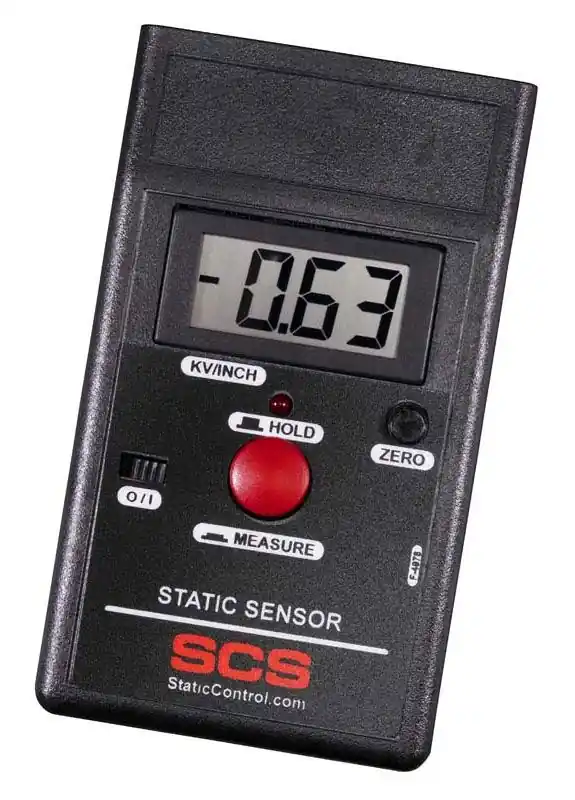

SCS 770716 TB-9111 Static Sensor

Portable Meter for Testing of Electrostatic Fields, measures surface voltage and polarity on objects up to ±19.99 kV at a distance of 1″

Chopper-Stabilized Sensor, yields accurate measurements in both normal and ionized environments

Dissipative Enclosure with 7 mm Ground Snap, grounds the meter when held by a grounded operator or bonded to ground using the included ground cord

Rotary Zero Knob, sets the zero-reference point with finely tuned precision

LED Range Indicator, assists with placing the meter at the correct distance from the object being measured

Hold Button, allows the measurements to be retained for easy reading and extends battery life

770719 Air Ionizer Test Upgrade Kit, provides the accessories needed to test the balance (offset voltage) and discharge times of air ionizers

NIST Calibrated with Certificate Included, calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology. For more information on the calibration of SCS products, see Calibration.

Made in the United States of America.

Specifications

Performance Measurement Range: 0 to ±19.99 kV / inch

Performance Measurement Accuracy: Better than ±5% of reading, ±2 counts

Performance Measurement Stability: ±10 counts

Front Panel Voltage Display 3-1/2 digit LED display

Sampling Rate 3 readings per second

Ranging System LED distance indicator; aligned targets indicate 1″

Range LED distance indicator

Rotary Zero Knob Sets the zero-reference point

Low Battery Indicator An LCD icon indicates when the battery is low

Hold Switch Retains the LCD display reading when depressed

Dimensions: 0.9″ H x 2.8″ W x 4.9″L; (24 mm x 70 mm x 126 mm)

Weight: 4.9 oz. (140 g) with battery

Operating Temperature: 50 to 86°F (10 to 30°C)

Operating Relative Humidity: To 80%, non-condensing

Operating Altitude: To 2000 m

Certifications: CE

Power Requirements: One (1) 9-volt alkaline battery

Operating Time: Greater than 50 hours, with a new battery at 21°C continuous
