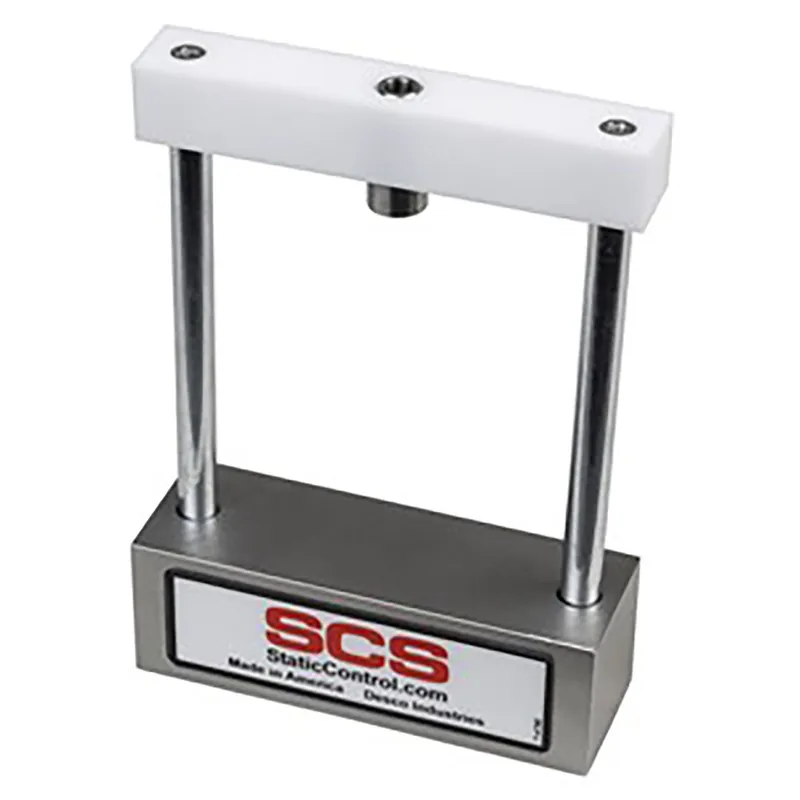

SCS 770768 Glove Constant Area and Force Electrode (CAFE)

Specifications

Glove CAFE

Dimensions: 1.0″ x 3.0″ x 4.3″ (25 mm x 76 mm x 109 mm)

Weight: 1.0 lbs (454 g)

Country of Origin: United States of America

Wrist Cord

Retracted Length: 6.0′ (1.8 m)

Extended Length: 8.5′ (2.6 m)

Termination 1: Black thermoplastic elastomer molded banana plug

Termination 2: Red thermoplastic elastomer molded 4 mm medical snap socket

Wire Insulation: Black PVC

Resistor: None

Country of Origin: United States of America

Features

Constant Area and Force Electrode (CAFE) for Gloves and Finger Cots: Measures electrical resistance per ANSI/ESD SP15.1 and includes one resistor-free wrist cord

Compatible with Multiple SCS Surface Resistance Meters:

Resistance Pro Meter Kit

Megohmmeter Test Kit

Made in the United States of America:

Operation

Fit a wristband snugly onto the wrist.

Snap the wrist cord to the wristband. Use the included non-resistor wrist cord if performing a Low Voltage System Resistance Test per sections 6.6 and 6.7 of ANSI/ESD SP15.1. Use a one megohm wrist cord if performing a High Voltage System, High Resistance Test per section 6.8 of ANSI/ESD SP15.1.

Plug the wrist cord into one input of the resistance meter

Attach the Glove CAFE to the other input of the resistance meter.

Wear the glove on the same hand as the wristband and wait a minimum of 15 seconds before beginning the electrical measurement.

Balance the Glove CAFE on the fingerprint side of the thumb or first finger of choice on the hand wearing the glove.

Take a resistance measurement using the resistance meter.

Product Overview

More Information

SKU	I324662
Part No.	770768
Brand	SCS
