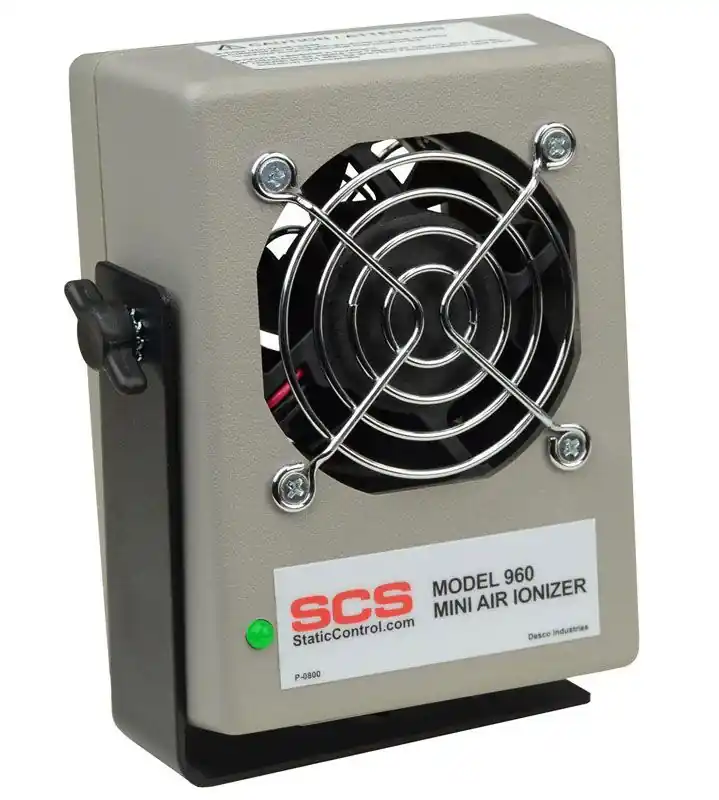

SCS 960 Mini Benchtop Ionizing Blower, 100-240V

Features

In-tool ionizer with steady-state DC emitters that provides fast discharge with low airflow.

Compact size (4.5″H x 3.3″W x 2.0″D with Bracket) meets small-footprint ionizer requirements for the inside of automated process tools.

Less than 4 seconds discharge time with ±20 volts offset voltage (balance) meets the ANSI/ESD S20.20 required limits for ionization tester per ANSI/ESD STM3.1 and ESD TR53.

Daisy-chain power cabling allows up to 4 ionizers to be connected in series and powered off one power adapter.

Power adapter not included.

Certifications: UL, C-UL

NOTE: Power adapter is not included and must be purchased separately.

Specifications

Input Voltage and Frequency (120V External Adapter): AC Power Adapter

Power Input: 120V, 60 Hz

Power Output: 24V, 500mA

Input Voltage and Frequency (230V External Adapter): AC Power Adapter

Power Input: 230V, 50Hz

Power Output: 24V, 500mA

Operating Temperature: 59 to 95 °F (15 to 35 °C)

Power Consumption 5W

Dimensions (including bracket): 4.5″ x 3.3″ x 2.0″ / (114mm x 84mm x 51mm)

Weight: 0.75lbs (0.3kg)

Balance (Offset Voltage) at 12″: ±20V

Neutralization (Discharge) Time at 12″: < 4 seconds

Maximum Airflow: 24CFM

Country of Origin: China

Product Overview

More Information

SKU	I201400
Part No.	960
Brand	SCS
Input	100 to 240V
