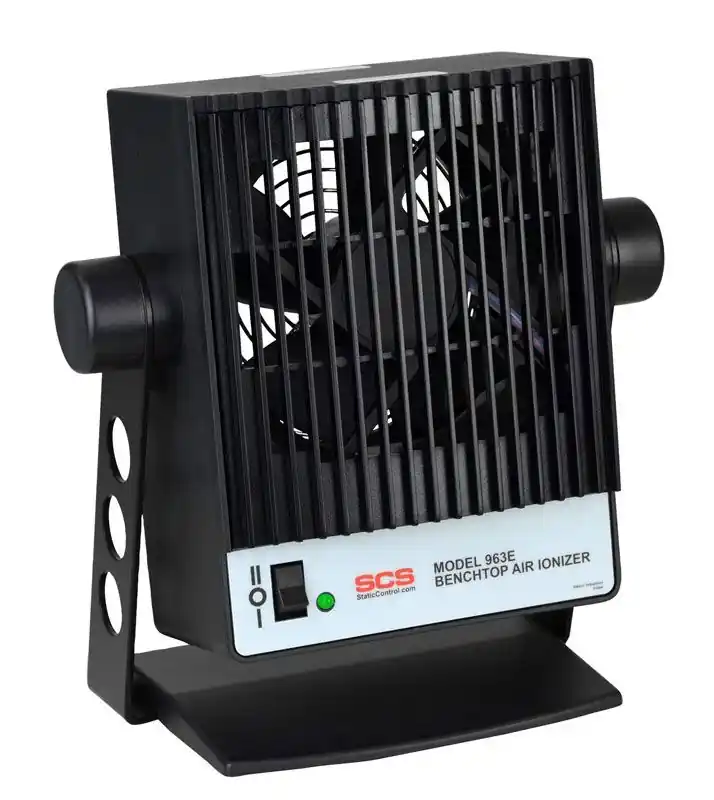

SCS 963E Benchtop Ionizing Blower, 100-240V

The Benchtop Air Ionizer reduces a static charge of ± 1000V to ± 100V in less than two seconds (the discharge time) at a distance of one foot (30 cm) using the high fan speed. Testing is performed in accordance with the ionization standard ANSI/ESD STM3.1.

The Benchtop Air Ionizer requires 24VDC power, which is supplied through a Mini-DIN connector on the back of the unit. The Ionizer is packaged with a switching power supply, capable of converting 100V–240VAC, 50/60 Hz into 24VDC. The switching power supply uses a 6 ft. (1.8 m) cord to connect to the ionizer and has an IEC 320 input socket for incoming power. It comes with a North American-style three-prong plug or Continental Europe (EURO) plug. Two versions are available depending on the power cord plug (European or North American). The Ionizer should only be used with the included power supply.

Specifications

Input Voltage and Frequency: AC Power Adapter

Power Input: 100-240V, 50/60Hz

Power Output: 24VDC, 1.0-1.5A

Power Consumption: 10W

Dimensions (including stand): 9″H x 8.5″W x 4.5″D / (23cm x 22cm x 11cm)

Weight: 2.5lbs (1.1kg)

Balance (Offset Voltage) at 12″: ±15V

Neutralization (Discharge) Time at 12″: < 2 seconds

Maximum Airflow: 112CFM

Emitter Points: Tungsten

Certifications: cULus, CE

Country of Origin: China

Product Overview

More Information

SKU	I200853
Part No.	963E
Brand	SCS
ESD-Safe	Yes
Input	100 to 240V
