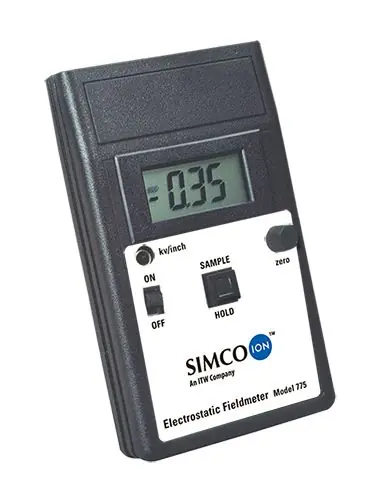

Simco-Ion Technology 91-0775 775 Compact Handheld Electrostatic Fieldmeter

Specifications

Battery: 9V alkaline battery included, battery life is excess of 40 hours

Output: Analog output through miniature jack, 1V corresponds to 10 kV

Range: ±0.00 to 19.99 kV at 1″ (2.54 cm), higher voltages may be measured at distances>1″

Accuracy: ±5%, chopper stabilized (accuracy unaffected by air ionization), least significant digit of display indicates tens of volts

Response: 5 Hz at analog output, digital display updates 3 times per second

Display: 3-1/2 digits, 0.4″ (1.02 cm) digit height

LCD Indicator: HOLD, BAT (low battery), automatic polarity

Control: ON/OFF side-switch, SAMPLE/HOLD push-button, ZERO control

Ground: Grounded through conductive case, snap-fastened ground strap provided

Operating Env: 0-104ºF (0-40ºC)

Enclosure: Conductive case

Dimension: 4.15″ L x 2.40″ W x 0.86″ D (10.5 x 6.10 x 2.18 cm)

Weight: 0.31 lb (0.142 kg) with battery

Warranty: Two-year limited warranty
