TFS CYCLOPS™ Low Pressure Diaphragm Pump

TFS CYCLOPS™ Low-Pressure Diaphragm Pump

Manufacturer: Total Finishing Supplies

Part #: TFS900954

Description:

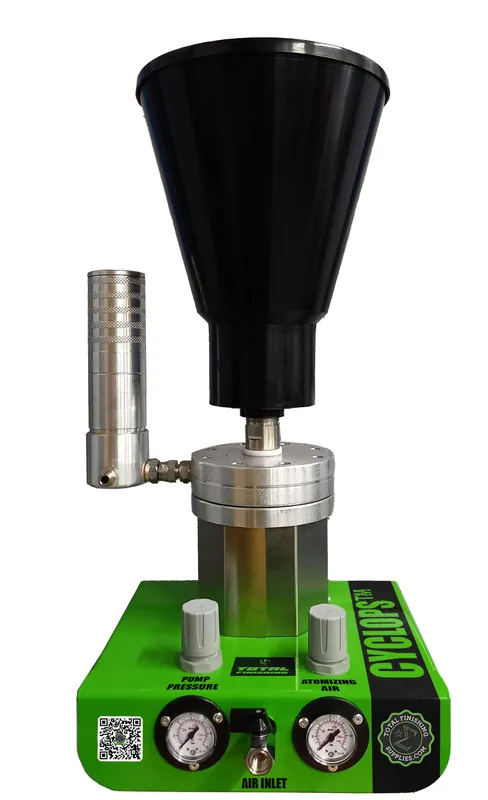

Introducing the CYCLOPS™ Pump, your new go-to for pulse-free pumping that delivers impeccable results. This powerhouse is perfect for industrial painting, furniture, plastics, and more, offering unmatched control and consistency. Equipped with double air regulators and a fluid filter that also acts as a pulsation dampener, you can fine-tune your setup to meet the demands of any project.

The CYCLOPS™ Pump comes standard with a Gravity Hopper, or a 5-gallon suction rod is available as an optional upgrade.

A CYCLOPS™ Never Blinks!

1:1 Ratio, diaphragm pneumatic pump complete with air regulators and line filter. Wall mounted. Suitable for industrial painting, furniture painting, plastic painting, enamels, anti-corrosion paints, polyurethane, epoxy. Available with Gravity Hopper or optional 5-gallon suction rod

Features:

Pulse-free pumping – The CYCLOPS™ has only a small quick-acting diaphragm so it is nearly pulse-free when it cycles.

Manifold filter – The CYCLOPS™ comes standard with a manifold filter which also works as a surge chamber to further minimize pulse.

Double air regulators – These are for precision control of pump pressure and atomizing air with gauges built into the wall mount.

Cart mounted option includes the 18″ x 30″

Specifications:

Pressure Ratio:	1:1
Flow:	10 l/min
Operating Pressure:	2-8 bar

Optional Accessories:

Parts and Accessories:

– 60 Mesh

• – Includes air and fluid hoses in a protective braided sleeve. Includes fittings.

Spare Hoses & Fittings:

– 1/4″ (M) x 1/4″ (F)

– 1/4″ (F) x 3/8″ Push (connects fluid hose to pump)

– 3/8″ (F) x 3/8″ Push (connects fluid hose to gun)

Ref. No.	Part No.	Description
	TFS1500	Liquid Pressure Regulator 0-6 bar
1		Screw M6X45
2		Screw M6X60
3		Flange
4		Screw M8x16
5		Membrane pad
6		Membrane
7		Air flange
8		Washer
9		Sensor
10		Intake valve body
11		Stainless steel ball
12		Spring
13		Valve support
14		Gasket
15		Exchange valve
16		Screw M8
17		Stainless steel cover
18		Screw M10
19		Micron support
20		Exchange valve
21		Rapid fitting 1/8” 6×4
22		Screw M4
23		Microflow valve
24		Rapid discharge valve
25/27		PTFE hose 2×4
26		T Rapid fitting 2×4
28		Stainless steel cover
29		Copper washer 3/8”
30		Aluminium spacer
31		Spring
32		Support ring
33		Stainless steel ball ø11
34		Fitting FS 3/8”x3/8”
35		Shaft

Ref. No.	Part No.	Description
1		Accumulator
2		Screw M6x10 Stainless steel
3		Mesh filter
4		Filter core
5		O-ring of Plenum filter
6	TFSM1438	Niples 1/4 – 3/8
7	TFSRBMF14	Tap MF 1/4
8	TFSRR14	Copper Washer
9	TFSTPM14	Top 1/4
10	TFS3630	Accumulator body
11	TFSSf11	Stainless steel ball ø 11
12	TFSAPM38	Swivel niples 3/8 MF
13	TFS1030	Spring
14	TFSM1414	Niples 1/4 BP
